DH50 Daewoo excavator specs & dimensions (1995 - 2026)

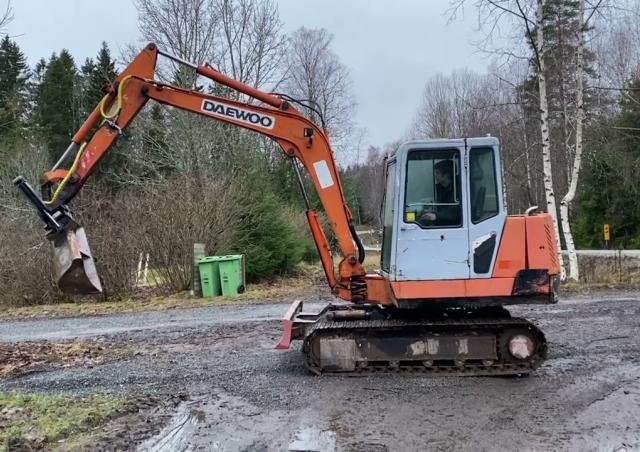

Daewoo DH50 is a mini excavator manufactured since 1995, with a weight of 4 tons. It features a track width of 400 mm, a transport…

Daewoo DH50 is a mini excavator manufactured since 1995, with a weight of 4 tons. It features a track width of 400 mm, a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2.492 meters. The machine has a tear-out force of 33 kN and comes equipped with air conditioning and track adjustment.

Mini Excavators Daewoo DH50

Technical specs - DH50 Daewoo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4 t
Transport length
5 m
Transport width
1 m
Transport height
2.49 m
Track width
400 mm
Max. Reach horizontal
6.13 m
Dredging depth
3.9 m
Tear-out force
33 kN
Engine manuf.
Daewoo
Engine type
DC24
Engine power
34.6 kW
Displacement
2369 l
Revolutions at max torque
2000 rpm
Max. torque
147 Nm
No. of cylinders
4
Cylinder bore x stroke
86 x 102 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
No
Blade
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Daewoo DH50 FAQ

When was the Daewoo DH50 manufactured?

The Daewoo DH50 was first produced in 1995.

How much does the Daewoo DH50 weigh?

The Daewoo DH50 weighs 4 tons.

What are the transport dimensions of the Daewoo DH50 mini excavator?

The Daewoo DH50 has a transport length of 5 meters, a transport width of 1 meter, and a transport height of 2.49 meters.

What is the track width of the Daewoo DH50 mini excavator?

The Daewoo DH50 mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Daewoo DH50 mini excavator?

The Daewoo DH50 mini excavator has a dredging depth of 3.9 meters and a maximum horizontal reach of 6.13 meters.

What is the tear-out force of the Daewoo DH50 mini excavator?

The Daewoo DH50 mini excavator has a tear-out force of 33 kN.

How much is a Daewoo DH50 Mini excavator (1995u20132025) worth?

The residual value of the Daewoo DH50 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
