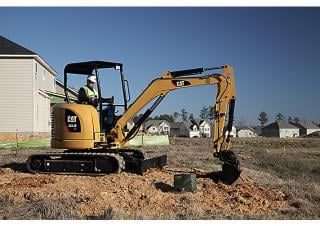

303.5E CR Caterpillar excavator specs & dimensions (2012 - 2019)
-
Model rating
- 8,00 / 10
Technical specs - 303.5E CR Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.69 t
- Transport length
- 4.73 m
- Transport width
- 1.78 m
- Transport height
- 2.5 m
- Track width
- 300 mm
- Driver protection
- KbR
- Max. Reach horizontal
- 5.06 m
- Dredging depth
- 2.88 m
- Tear-out force
- 33 kN
- Model series
- CR
- Engine manuf.
- Caterpillar
- Engine type
- C1.8
- Engine power
- 23.6 kW
- Displacement
- 1.8 l
- Revolutions at max torque
- 1800 rpm
More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
-
Yes
- Rubber track
-
Yes
- Blade
-
Yes
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download specalog and datasheets (PDF)
Caterpillar 303.5E CR FAQ
How much does the Caterpillar 303.5E CR weigh?
What are the transport dimensions of the Caterpillar 303.5E CR mini excavator?
What is the track width of the Caterpillar 303.5E CR's undercarriage?
What are the excavation performance specifications of the Caterpillar 303.5E CR mini excavator?
What is the tear-out force of the Caterpillar 303.5E CR mini excavator?
What operator safety and support features does the Caterpillar 303.5E CR have?
How much is a Caterpillar 303.5E CR Mini excavator (2012u20132019) worth?
Reviews
-
Model rating
- 8,00 / 10
Caterpillar 303.5E CR user from Nicaragua
Very stable machine. Excellent size.
Caterpillar 303.5E CR user from United States
Easy to use, ergonomic
