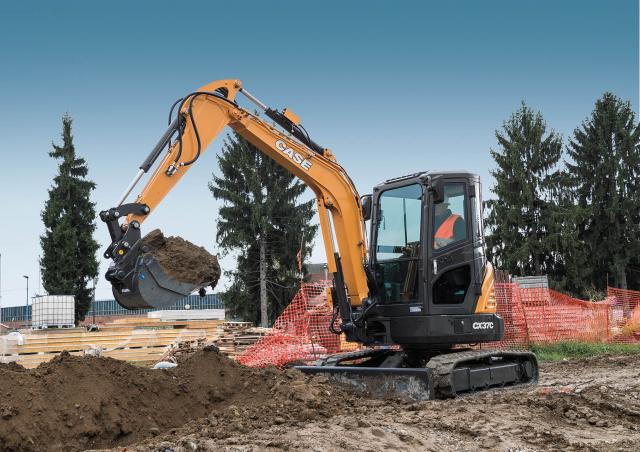

CX37C Case excavator specs & dimensions (2021 - 2026)

HIGH VERSATILITY, Working range
- Keep giggling with the C-Series minis: Maximum reach is now + 10 % higher compared to the previous series. - Load high sided trucks easily: Best-in-class dump clearance combined with superior stability make loading of trucks an easy task. - Save time: The C-Series minis deliver faster cycle times during each combined operation, thanks to their excellent boom rotation speed. - Choose the arm most suitable for you: the C-Series minis adjust a wide range of customer needs, high breakout force with short arms or outstanding digging depth and reach with long arms. Attachments: Get the best out of your CASE mini with the integrated attachment. Lift function: All models can be fitted with an additional bolt counterweight that increases stability and lifting capacity even more. A certified Object Handling Kit can be used for safe lifters.

HIGH EFFICIENCY
Clean engine and auto-idle system, proven, reliable, fuel efficient, low emission and low noise Kubota T4 Final (Stage, Engine (CX26C and CX30C). Reliable and environmentally friendly machine T4 Final (Stage, Yanmar Motor (CX37C). Standard Automatic on CX37C: The engine automatically slows down to idle speed after five seconds of inactivity. This means less fuel consumption, less noise and less overall wear.
MODERN AND FUNCTIONAL CLUSTER
Easy-to-read digital cluster The digital cluster is easy to read, gives the operator station a modern look and provides useful information: gauges: fuel level, engine coolant temperature, info and warning lamps: hydraulic QC lamp, travel speed, engine coolant temperature, engine oil pressure, battery charger, low fuel.

HIGH VERSATILITY
- Offering of integrated attachments - Mono or bi-directional hydraulic oil flow - Additional counterweight available
EASY SERVICEABILITY
- Easy access to battery, hydraulic valves and all regular service components - Two-piece blade hydraulic hoses - Extended component life.

World class components, world class components: C-Series minis are designed for reliability, components come from the best suppliers on the market. The result is simply highly reliable machines.
EASY AND SAFE SERVICEABILITY
Grouped service points under the C-Series hood are designed for servicing capability: Rationalized service point layout, Convenient check points, easy to remove side panels for full maintenance and repair access, Two piece blade hydraulic hoses.

Comfortable and durable cabin with suspension seat, all models feature a spacious cab with reduced sound levels and excellent visibility. Ergonomically placed joysticks and adjustable wrist rests make the operator station a pleasant workplace. Standard equipment: weight variable pendulum seat, radio USB with 2 speakers, multiple storage compartments, air conditioning (optional for CX37C). Fold-in front window can be opened easily and safely stored in an open position to improve ventilation and sighting (cab type).

- Low noise inside the cab - 1 and 2 auxiliary hydraulics - Digital cluster - Radio with USB - Pendulum seat - Air conditioning (CX37C)

Standard arm (1120 mm on CX26C / CX30C; 1300 mm on CX37C) Rubber tracks (250 mm on CX26C ; 300 mm on CX30C,CX37C) ROPS / TOPS / FOPS-compliant cab/canopy Emergency stop switch Pilot system with accumulator 2 speed Travel mode with auto shifting system 1. Auxiliary 2-way circuit controlled with pedal Foldable boom swing pedal Suspension seat with seat belt Radio/USB preset (version of the CAB) Standard antitheft guard with interval adjustment function Waterproof digital instrument cluster Centralized greasing intake
OPTIONAL EQUIPMENT
Close Cab (ROPS / FOPS / TOPS compliant) Long arm (1350 mm to CX26C / CX30C; 1600 mm to CX37C) 2. Auxiliary circuit controlled with joystick Hydraulic quick coupler provision Beacon Travel Alarm Additional counterweight Air conditioner (CX37C) Object handling kit Radio with USB (version of CAB) LED working lights.

SAFETY FIRST
C Series Minis: no compromise on safety, ROPS / TOPS / FOPS: All models and versions meet the requirements of Rollover/Tip-Over and Falling Objects Protective Structure. Emergency Stop Switch: This switch allows in case of emergency to immediately stop the engine. Pilot system with accumulator: This standard feature allows the operator to safely shut off the attachment even when an engine is switched off for greater safety. Travel alarm: An audible alarm alert warns people close to machine when driving forward or reverse. This feature is optional on all four models. Double surface rollers: Detracking can be dangerous for the operator and those near the machine. CASE The C series minis have a double flanged scooter design that minimises any risk of des Tracking. Zero Tail Swing (ZTS): The ZTS construction plan does not mean any danger of hitting obstacles with the rear end of the machine

- X-frame undercarriage - Cylinder fuses - Low risk of derailment with double flange rollers
SAFETY FIRST
- ROPS / TOPS / FOPS certified cab / Canopy - Emergency stop switch - Pilot circuit with accumulator - Object Handling Kit (all four models)
Boom and arm reinforced mounting pin: the pivot pin
This keeps boom and arm together is a critical point on each excavator. On CASE C-Series, the pin is secured from both sides, minimizing the risk of playing between boom and arm. Protected Cylinders: Boom and blade cylinders as well as safety valves are well protected with steel covers.
