CX36B ZTS Case excavator specs & dimensions (2005 - 2017)

Case CX36B ZTS is a mini excavator manufactured from 2005 to 2017. It has a weight of 3.84 tons and a track width of 300 mm. The t…

Case CX36B ZTS is a mini excavator manufactured from 2005 to 2017. It has a weight of 3.84 tons and a track width of 300 mm. The transport dimensions are 5.17 meters in length, 1.62 meters in width, and 2.51 meters in height. The tear-out force is 19 kN, and it features a bucket width of 0.6 meters with a minimum bucket capacity of 0.1 cubic meters. Special equipment includes a blade and rubber tracks.

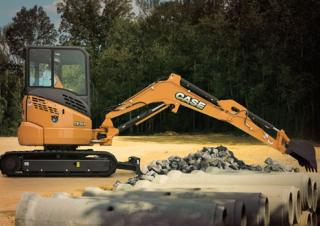

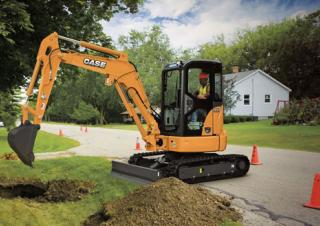

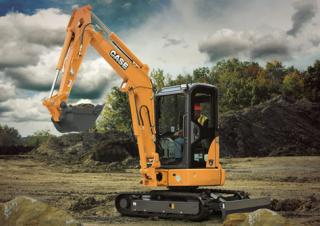

Mini Excavators Case CX36B ZTS
Mini Excavators Case CX36B ZTS
Mini Excavators Case CX36B ZTS
Mini Excavators Case CX36B ZTS
Mini Excavators Case CX36B ZTS
Mini Excavators Case CX36B ZTS

Technical specs - CX36B ZTS Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.84 t
Transport length
5.17 m
Transport width
1.62 m
Transport height
2.51 m
Bucket capacity min.
0.1 m³
Bucket width
0.6 m
Track width
300 mm
Driver protection
Kb
Max. Reach horizontal
4.98 m
Dredging depth
3.08 m
Tear-out force
19 kN
Model series
B
Engine manuf.
Yanmar
Engine type
3TNV88A-PYB
Engine power
22 kW
Displacement
1.65 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity, bucket capacity max., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX36B ZTS FAQ

When was the Case CX36B ZTS manufactured?

The Case CX36B ZTS was manufactured from 2005 to 2017.

How much does the Case CX36B ZTS mini excavator weigh?

The Case CX36B ZTS mini excavator weighs 3.84 tons.

What are the transport dimensions of the Case CX36B ZTS mini excavator?

The Case CX36B ZTS has a transport length of 5.17 meters, a transport width of 1.62 meters, and a transport height of 2.51 meters.

What is the track width of the Case CX36B ZTS mini excavator?

The Case CX36B ZTS mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Case CX36B ZTS mini excavator?

The Case CX36B ZTS mini excavator has a dredging depth of 3.08 meters and a maximum horizontal reach of 4.98 meters.

What is the tear-out force of the Case CX36B ZTS mini excavator?

The Case CX36B ZTS mini excavator has a tear-out force of 19 kN.

What are the specifications of the primary work tool on the Case CX36B ZTS mini excavator?

The primary work tool of the Case CX36B ZTS mini excavator has a minimum bucket capacity of 0.1 cubic meters and a bucket width of 0.6 meters.

What driver protection features does the Case CX36B ZTS have?

The Case CX36B ZTS has driver protection in the form of a cabin.

How much is a Case CX36B ZTS Mini excavator (2005u20132017) worth?

The residual value of the Case CX36B ZTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
