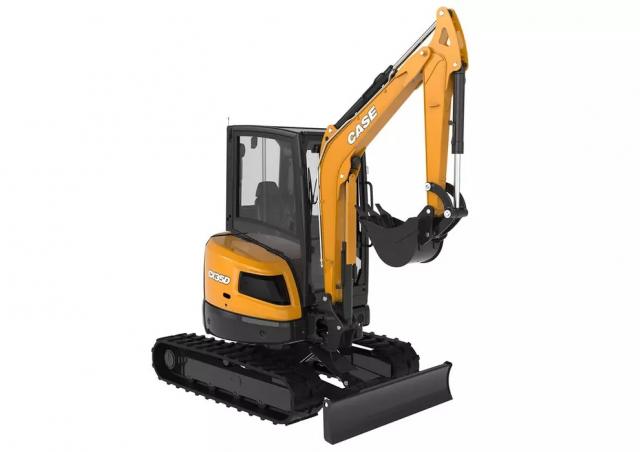

CX35D Case excavator specs & dimensions (2025 - 2026)

Case CX35D is a mini excavator manufactured since 2023, with a weight of 3.4 tons. It features a track width of 300 mm, a transpor…

Case CX35D is a mini excavator manufactured since 2023, with a weight of 3.4 tons. It features a track width of 300 mm, a transport length of 4.468 meters, a transport width of 1.58 meters, and a transport height of 2.53 meters. The machine has a tear-out force of 31 kN, a dredging depth of 3.07 meters, and a maximum horizontal reach of 5.12 meters. The bucket width is 0.5 meters, with a capacity ranging from 0.041 m³ to 0.154 m³, and a standard capacity of 0.049 m³. Special equipment includes air conditioning, a blade, hydraulic quick hitch, mechanical quick hitch, and rubber tracks.

Mini Excavators Case CX35D

Technical specs - CX35D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.5 t
Transport length
4.527 m
Transport width
1.58 m
Transport height
2.52 m
Bucket capacity
0.049 m³
Bucket capacity min.
0.041 m³
Bucket capacity max.
0.154 m³
Bucket width
0.5 m
Track width
300 mm
Max. Reach horizontal
5.12 m
Dredging depth
3.07 m
Tear-out force
31 kN
Model series
D
Engine manuf.
Kubota
Engine type
D1703-M
Engine power
18.2 kW
Displacement
1.647 l
Revolutions at max torque
2200 rpm
Max. torque
97.4/1500 Nm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX35D FAQ

When was the Case CX35D manufactured?

The Case CX35D was first produced in 2023.

How much does the Case CX35D mini excavator weigh?

The Case CX35D mini excavator weighs 3.4 tons.

What are the transport dimensions of the Case CX35D mini excavator?

The Case CX35D has a transport length of 4.47 meters, a transport width of 1.58 meters, and a transport height of 2.53 meters.

What is the track width of the Case CX35D mini excavator?

The Case CX35D mini excavator has a track width of 300 mm.

What is the excavation performance of the Case CX35D mini excavator?

The Case CX35D mini excavator has a dredging depth of 3.07 meters and a maximum horizontal reach of 5.12 meters.

What is the tear-out force of the Case CX35D mini excavator?

The Case CX35D mini excavator has a tear-out force of 31 kN.

What are the bucket specifications of the Case CX35D mini excavator?

The Case CX35D mini excavator has a bucket capacity of 0.049 mu00b3, with a minimum capacity of 0.04 mu00b3 and a maximum capacity of 0.15 mu00b3, and the bucket width is 0.5 meters.
