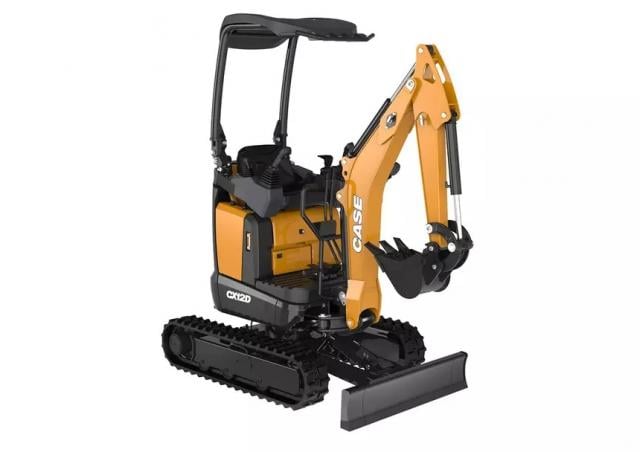

CX12D Case excavator specs & dimensions (2022 - 2026)

Case CX12D is a mini excavator manufactured since 2022, with a weight of 1.3 tons. It features a track width of 180 mm, a transpor…

Case CX12D is a mini excavator manufactured since 2022, with a weight of 1.3 tons. It features a track width of 180 mm, a transport length of 3.082 meters, a transport width of 0.79 meters, and a transport height of 2.3 meters. The machine has a tear-out force of 11.5 kN, a dredging depth of 1.98 meters, and a maximum horizontal reach of 3.545 meters. The bucket width is 0.3 meters, with a bucket capacity ranging from 0.013 m³ to 0.075 m³, and a standard capacity of 0.021 m³. Special equipment includes a blade, mechanical quick hitch, rubber track, and track adjustment.

Mini Excavators Case CX12D

Technical specs - CX12D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.3 t
Transport length
3.082 m
Transport width
0.79 m
Transport height
2.3 m
Bucket capacity
0.021 m³
Bucket capacity min.
0.013 m³
Bucket capacity max.
0.075 m³
Bucket width
0.3 m
Track width
180 mm
Driver protection
FD
Max. Reach horizontal
3.545 m
Dredging depth
1.98 m
Tear-out force
11.5 kN
Model series
D
Engine manuf.
Kubota
Engine type
D722
Engine power
8.8 kW
Displacement
0.719 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Case CX12D FAQ

When was the Case CX12D manufactured?

The Case CX12D was first produced in 2022.

How much does the Case CX12D mini excavator weigh?

The Case CX12D mini excavator weighs 1.3 tons.

What are the transport dimensions of the Case CX12D mini excavator?

The Case CX12D has a transport length of 3.08 meters, a transport width of 0.79 meters, and a transport height of 2.3 meters.

What is the track width of the Case CX12D mini excavator's undercarriage?

The Case CX12D mini excavator has a track width of 180 mm.

What are the excavation performance specifications of the Case CX12D mini excavator?

The Case CX12D mini excavator has a dredging depth of 1.98 meters and a maximum horizontal reach of 3.545 meters.

What is the tear-out force of the Case CX12D mini excavator?

The Case CX12D mini excavator has a tear-out force of 11.5 kN.

What are the specifications of the primary work tool bucket on the Case CX12D mini excavator?

The Case CX12D mini excavator's bucket has a capacity of 0.021 mu00b3, with a minimum capacity of 0.01 mu00b3 and a maximum capacity of 0.08 mu00b3, and a bucket width of 0.3 meters.

What operator safety and support features does the Case CX12D have?

The Case CX12D is equipped with a canopy for driver protection.

How much is a Case CX12D Mini excavator (2022u20132025) worth?

The residual value of the Case CX12D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
