E35z Bobcat excavator specs & dimensions (2019 - 2026)

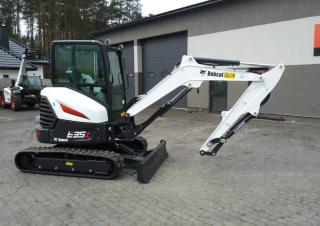

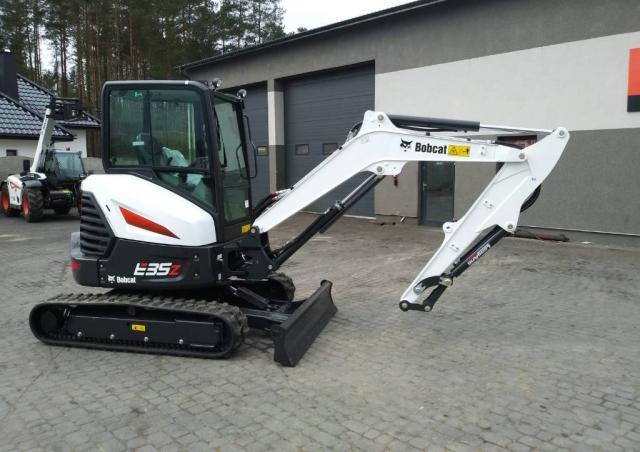

Bobcat E35z is a mini excavator manufactured since 2019, with a weight of 3.5 tons. It features a track width of 300 mm, a transpo…

Bobcat E35z is a mini excavator manufactured since 2019, with a weight of 3.5 tons. It features a track width of 300 mm, a transport length of 4.82 meters, a transport width of 1.75 meters, and a transport height of 2.47 meters. The machine has a tear-out force of 33.43 kN, a dredging depth of 3.12 meters, and a maximum horizontal reach of 5.35 meters. It is equipped with a blade as special equipment.

Mini Excavators Bobcat E35z

Visit Bobcat live at

Technical specs - E35z Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.5 t
Transport length
4.82 m
Transport width
1.75 m
Transport height
2.47 m
Track width
300 mm
Max. Reach horizontal
5.35 m
Dredging depth
3.12 m
Tear-out force
33.43 kN
Model series
R
Engine manuf.
Kubota
Engine type
D1703-M-D1-E4B-BC-2
Engine power
18.2 kW
Displacement
1.64 l
Revolutions at max torque
2200 rpm
Max. torque
97.4 Nm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E35z FAQ

When was the Bobcat E35z manufactured?

The Bobcat E35z was first produced in 2019.

How much does the Bobcat E35z weigh?

The Bobcat E35z weighs 3.5 tons.

What are the transport dimensions of the Bobcat E35z mini excavator?

The Bobcat E35z has a transport length of 4.82 meters, a transport width of 1.75 meters, and a transport height of 2.47 meters.

What is the track width of the Bobcat E35z mini excavator?

The Bobcat E35z mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Bobcat E35z mini excavator?

The Bobcat E35z mini excavator has a dredging depth of 3.12 meters and a maximum horizontal reach of 5.35 meters.

What is the tear-out force of the Bobcat E35z?

The Bobcat E35z has a tear-out force of 33.43 kN.

How much is a Bobcat E35z Mini excavator (2019u20132025) worth?

The residual value of the Bobcat E35z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Bobcat E35z overview

Dimensions and weight

Operating weight with cab and bucket (ISO 6016) Transport mass (no attachment)3499 kg 3335 kg
Weight reduction with canopy-118 kg
Additional weight for cab with HVAC19 kg
Additional weight for steel tracks96 kg
Additional weight for long dipperstick (with heavy ctw.)303 kg
Ground pressure with rubber tracks31.84 kPa
Engine
Make / modelKubota / D1703-M-D1-E4B-BC-2
FuelDiesel
Number of cylinders3
Displacement1642 cm3
Maximum power @ 2200 rpm (ISO 14396)18.2 kW
Maximum torque (SAE)97.4 Nm
Performance
Digging force dipperstick (ISO 6015)"20790 N
Digging force long dipperstick (ISO 6015)"18010 N
Digging force bucket (ISO 6015)"33430 N
Drawbar pull34132 N
Travel speed low range"2.6 km/h
Travel speed high range"4.7 km/h
Hydraulic System
Pump typeSingle outlet variable displacement load sensing torque. Pump with gear pumps"
Total hydraulic capacity Auxiliary flow Auxiliary relief101.20 L/min 63.90 L/min 206.0 bar
Slew System
Boom swing left"75.0°
Boom swing right"55.0°
Slew rate8.6 RPM
Fluid Capacities
Cooling system8.00 L
Engine lubrication plus oil filter5.20 L
Fuel reservoir52.00 L
Hydraulic reservoir8.30 L
Hydraulic system39.70 L
Environmental
Noise level LpA(EU Directive 2006/42/EC)77 dB(A)
Noise level LWA(EU Directive 2000/14/EC)94 dB(A)
Whole body vibration (ISO 2631–1)0.11 ms-2
Hand-arm vibration (ISO 5349–1)0.34 ms-2
Standard Features
1750 mm dozer bladeHorn
300 mm rubber tracksHydraulic joystick controls
Adjustable double acting auxiliary hydraulic (AUX1) with Quick CouplersProportional fingertip auxiliary and boom swing offset hydraulic control
Battery disconnect switchRetractable seat belt
Blade float featureSuspension seat with high back
Clamp readyTOPS/ROPS/FOPS canopy * 1
Control console locksTwo-speed travel with Auto shift
CupholderUpper structure four-point tie down
Engine/hydraulic monitor with shutdownWater separator
Foldable and ergonomic pedalsWork light (boom)
Full fuel warning alarmWarranty: 12 months 2000 hours (whichever occurs first)"
1. Roll Over Protective Structure (ROPS) – Meets requirements of ISO 3471. Tip Over Protective Structure (TOPS) – Meets requirements of ISO 12117. Falling Object Protective Structure (FOPS) - Meets requirements of ISO 3449.
