ZE480E Zoomlion excavator specs & Dimensions (2020 - 2023)

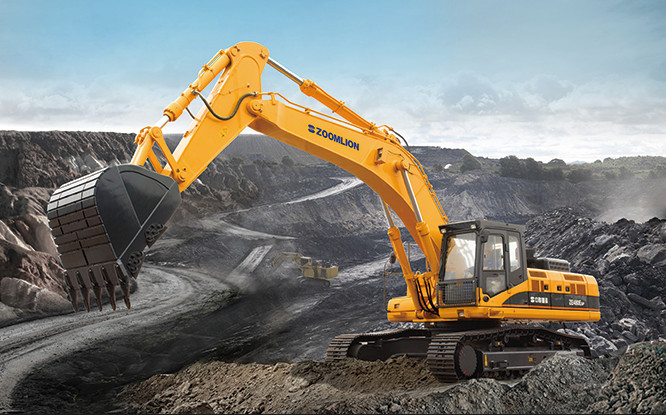

Zoomlion ZE480E is a crawler excavator manufactured since 2020. It has a weight of 47.5 tons and a track width of 600 mm. The tran…

Zoomlion ZE480E is a crawler excavator manufactured since 2020. It has a weight of 47.5 tons and a track width of 600 mm. The transport dimensions are 12.16 meters in length, 3.61 meters in width, and 3.7 meters in height. The machine features a tear-out force of 285 kN, a dredging depth of 7.84 meters, and a maximum horizontal reach of 11.875 meters. The bucket capacity is 2.15 cubic meters, and it comes equipped with air conditioning.

Crawler Excavators Zoomlion ZE480E

Technical specs - ZE480E Zoomlion

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.5 t
Transport length
12.16 m
Transport width
3.61 m
Transport height
3.7 m
Bucket capacity
2.15 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.875 m
Dredging depth
7.84 m
Tear-out force
285 kN
Model series
ZE
Engine manuf.
Cummins
Engine type
QSM11
Engine power
274 kW
Emission level
EURO II

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Zoomlion ZE480E FAQ

When was the Zoomlion ZE480E manufactured?

The Zoomlion ZE480E was manufactured from 2020 to 2023.

How much does the Zoomlion ZE480E weigh?

The Zoomlion ZE480E weighs 47.5 tons.

What are the transport dimensions of the Zoomlion ZE480E crawler excavator?

The Zoomlion ZE480E has a transport length of 12.16 meters, a transport width of 3.61 meters, and a transport height of 3.7 meters.

What is the track width of the Zoomlion ZE480E's undercarriage?

The Zoomlion ZE480E has a track width of 600 mm.

What are the excavation performance specifications of the Zoomlion ZE480E?

The Zoomlion ZE480E has a dredging depth of 7.84 meters, a maximum horizontal reach of 11.875 meters, and features a monobloc boom.

What is the tear-out force of the Zoomlion ZE480E, given that no direct power ratings are available?

The Zoomlion ZE480E has a tear-out force of 285 kN.

What is the bucket capacity of the Zoomlion ZE480E excavator?

The bucket capacity of the Zoomlion ZE480E is 2.15 cubic meters.
