XE500LC XCMG excavator specs & Dimensions (2025 - 2026)

Weight: 52t – Bucket capacity: 2.8m³ – Boom: MB – Tear-out force: 269kN – Model series: XE – Engine manuf.: Cummins…

Weight: 52t – Bucket capacity: 2.8m³ – Boom: MB – Tear-out force: 269kN – Model series: XE – Engine manuf.: Cummins

Check out detailed specifications, information and technical data for XCMG XE500LC excavator manufactured between 2025 - 2026. Get more in-depth insight with XCMG XE500LC digger specifications. See information, like: Weight: 52t – Bucket capacity: 2.8m³ – Boom: MB – Tear-out force: 269kN – Model series: XE – Engine manuf.: Cummins and more.

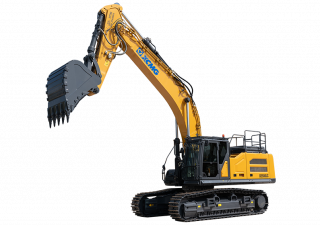

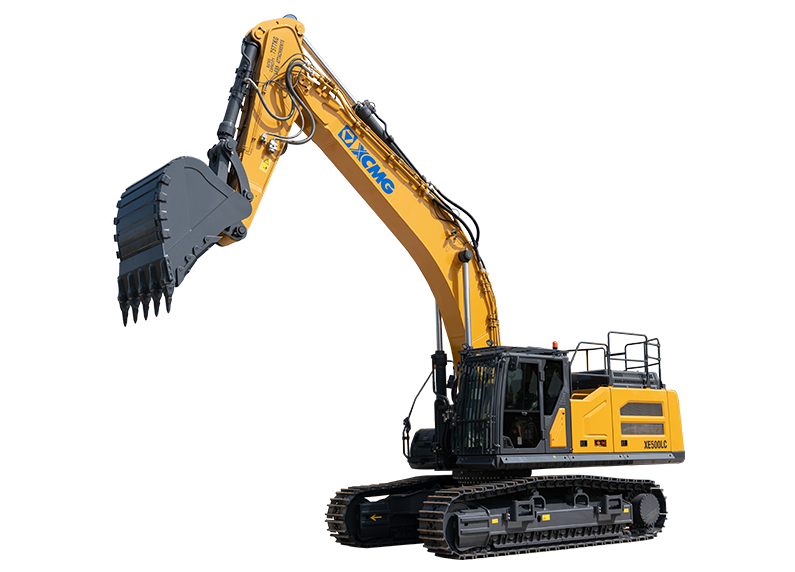

Crawler Excavators XCMG XE500LC
Crawler Excavators XCMG XE500LC
Crawler Excavators XCMG XE500LC
Crawler Excavators XCMG XE500LC
Crawler Excavators XCMG XE500LC
Crawler Excavators XCMG XE500LC

Visit XCMG live at

Technical specs - XE500LC XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
52 t
Bucket capacity
2.8 m³
Boom
MB
Tear-out force
269 kN
Model series
XE
Engine manuf.
Cummins
Engine type
QSX12
Engine power
318 kW
Displacement
11.8 l
Max. torque
1898/1600 Nm
Emission level
III

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, track width, max. reach horizontal, dredging depth, bucket width, dimension lxwxh, revolutions at max torque...

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, track width, max. reach horizontal, dredging depth, bucket width, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
