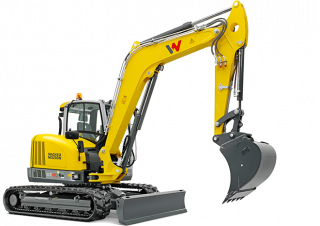

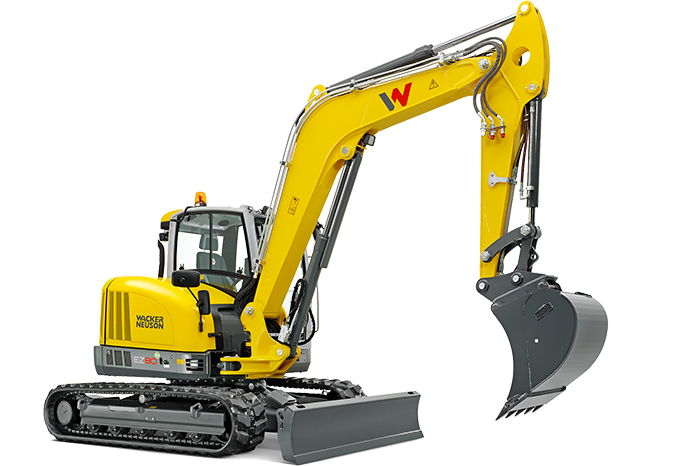

EZ80 Wacker Neuson excavator specs & Dimensions (2020 - 2026)

Wacker Neuson EZ80 is a Crawler Excavator manufactured since 2020. It has a weight of 8.09 tons and a track width of 450 mm. The t…

Wacker Neuson EZ80 is a Crawler Excavator manufactured since 2020. It has a weight of 8.09 tons and a track width of 450 mm. The transport dimensions are 6.94 meters in length, 2.25 meters in width, and 2.56 meters in height. The machine features a tear-out force of 43.7 kN, a dredging depth of 3.92 meters, and a maximum horizontal reach of 6.8 meters. Special equipment includes air conditioning, a blade, and an overload alert system.

Crawler Excavators Wacker Neuson EZ80

Visit Wacker Neuson live at

Technical specs - EZ80 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.09 t
Transport length
6.94 m
Transport width
2.25 m
Transport height
2.56 m
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.8 m
Dredging depth
3.92 m
Tear-out force
43.7 kN
Model series
EZ
Engine manuf.
Perkins
Engine type
404D-22T
Engine power
42 kW
Displacement
2.2 l
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson EZ80 FAQ

When was the Wacker Neuson EZ80 manufactured?

The Wacker Neuson EZ80 was first produced in 2020.

How much does the Wacker Neuson EZ80 weigh?

The Wacker Neuson EZ80 weighs 8.09 tons.

What are the transport dimensions of the Wacker Neuson EZ80?

The Wacker Neuson EZ80 has a transport length of 6.94 meters, a transport width of 2.25 meters, and a transport height of 2.56 meters.

What is the track width of the Wacker Neuson EZ80's undercarriage?

The Wacker Neuson EZ80 has a track width of 450 mm.

What are the excavation performance specifications of the Wacker Neuson EZ80?

The Wacker Neuson EZ80 has a dredging depth of 3.92 meters, a maximum horizontal reach of 6.8 meters, and is equipped with a monobloc boom.

What are the power ratings of the Wacker Neuson EZ80?

There are no power rating specifications available for the Wacker Neuson EZ80 in the provided data.

How much is a Wacker Neuson EZ80 Crawler excavator (2020u20132025) worth?

The residual value of the Wacker Neuson EZ80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
