ECR88D Volvo excavator specs & Dimensions (2015 - 2018)

Volvo ECR88D is a crawler excavator manufactured from 2015 to 2018, with a weight of 9.01 tons. It features a track width of 450 m…

Volvo ECR88D is a crawler excavator manufactured from 2015 to 2018, with a weight of 9.01 tons. It features a track width of 450 mm, a transport length of 6.37 meters, a transport width of 2.3 meters, and a transport height of 2.715 meters. The machine has a tear-out force of 57.2 kN, a dredging depth of 4.13 meters, and a maximum horizontal reach of 6.97 meters.

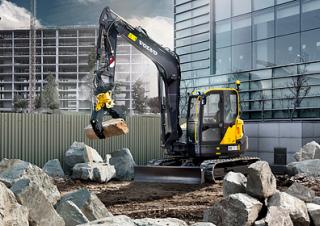

Crawler Excavators Volvo ECR88D
Crawler Excavators Volvo ECR88D
Crawler Excavators Volvo ECR88D
Crawler Excavators Volvo ECR88D
Crawler Excavators Volvo ECR88D
Crawler Excavators Volvo ECR88D

Visit Volvo live at

Technical specs - ECR88D Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.01 t
Transport length
6.37 m
Transport width
2.3 m
Transport height
2.715 m
Bucket capacity
0.2 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.97 m
Dredging depth
4.13 m
Tear-out force
57.2 kN
Bucket width
0.6 m
Model series
ECR
Engine manuf.
Volvo
Engine type
D 2.6 H
Engine power
43 kW
Displacement
2.615 l
Revolutions at max torque
2000 rpm
Max. torque
220/1300 Nm
No. of cylinders
4
Cylinder bore x stroke
87x110 mm
Emission level
4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo ECR88D FAQ

When was the Volvo ECR88D manufactured?

The Volvo ECR88D was manufactured from 2015 to 2018.

How much does the Volvo ECR88D weigh?

The Volvo ECR88D weighs 9.01 tons.

What are the transport dimensions of the Volvo ECR88D crawler excavator?

The Volvo ECR88D has a transport length of 6.37 meters, a transport width of 2.3 meters, and a transport height of 2.72 meters.

What are the undercarriage specifications of the Volvo ECR88D?

The Volvo ECR88D has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Volvo ECR88D?

The Volvo ECR88D has a dredging depth of 4.13 meters, a maximum horizontal reach of 6.97 meters, and features a monobloc boom.

What is the tear-out force of the Volvo ECR88D?

The Volvo ECR88D has a tear-out force of 57.2 kN.

What are the specifications of the primary work tool bucket on the Volvo ECR88D?

The primary work tool bucket of the Volvo ECR88D has a capacity of 0.2 cubic meters and a width of 0.6 meters.

How much is a Volvo ECR88D Crawler excavator (2015u20132018) worth?

The residual value of the Volvo ECR88D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
