ECR88 Volvo excavator specs & Dimensions (2009 - 2014)

Model rating
8,00 / 10

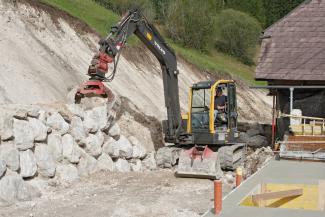

Volvo ECR88 is a crawler excavator manufactured from 2009 to 2014, with a weight of 8.5 tons. It features a track width of 450 mm,…

Volvo ECR88 is a crawler excavator manufactured from 2009 to 2014, with a weight of 8.5 tons. It features a track width of 450 mm, a transport length of 6.41 meters, a transport width of 2.3 meters, and a transport height of 2.68 meters. The machine has a tear-out force of 59 kN and comes equipped with air conditioning and a blade.

Crawler Excavators Volvo ECR88

Visit Volvo live at

Technical specs - ECR88 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Transport length
6.41 m
Transport width
2.3 m
Transport height
2.68 m
Bucket capacity
0.2 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.4 m
Dredging depth
4.87 m
Tear-out force
59 kN
Bucket width
0.6 m
Model series
ECR
Engine manuf.
Volvo
Engine type
D 3.4
Engine power
42 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo ECR88 FAQ

When was the Volvo ECR88 manufactured?

The Volvo ECR88 was manufactured from 2009 to 2014.

How much does the Volvo ECR88 weigh?

The Volvo ECR88 weighs 8.5 tons.

What are the transport dimensions of the Volvo ECR88 crawler excavator?

The Volvo ECR88 has a transport length of 6.41 meters, a transport width of 2.3 meters, and a transport height of 2.68 meters.

What are the undercarriage specifications of the Volvo ECR88?

The Volvo ECR88 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Volvo ECR88?

The Volvo ECR88 has a dredging depth of 4.87 meters, a maximum horizontal reach of 7.4 meters, and is equipped with a monobloc boom.

What are the power ratings of the Volvo ECR88?

The source data does not provide power rating information for the Volvo ECR88.

What are the bucket specifications of the Volvo ECR88 excavator?

The Volvo ECR88 excavator has a bucket capacity of 0.2 cubic meters and a bucket width of 0.6 meters.

How much is a Volvo ECR88 Crawler excavator (2009u20132014) worth?

The residual value of the Volvo ECR88 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
