EC950F Volvo excavator specs & Dimensions (2020 - 2026)

EC950F Overview

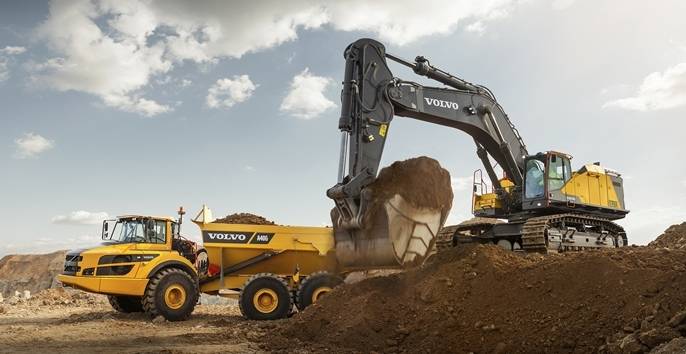

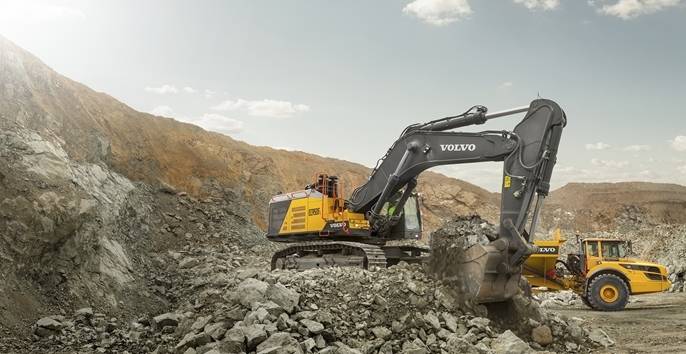

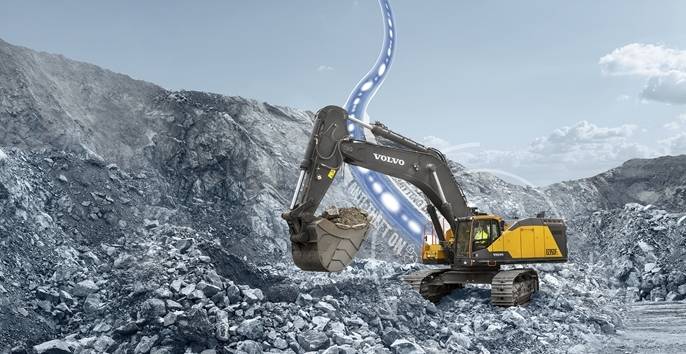

Do the big jobs better, stronger and faster with the EC950F. The 90 tonne crawler excavator offers the perfect combination of power and stability to handle a higher capacity in the toughest applications.

Solid stability

The outstanding stability of the EC950F means operators can work with confidence in the most challenging environments. The well-balanced and solid machine features a wide track gauge, long track length, retractable undercarriage and an optimized counterweight.

Bigger machine, bigger results

Gain more profitability in the EC950F, Volvo’s largest crawler excavator. The 90 tonne excavator delivers a high bucket capacity for more tons per hour, achieving a fast and efficient on-site production.

Superior digging force

Even in the harshest applications, the EC950F is up to the challenge. Experience superior digging force, particularly when working with hard and heavy materials, thanks to constant high hydraulic pressure delivering power to the machine when you need it.

Durable by design

Achieve non-stop production with the reliable EC950F, built with protected components to deliver maximum longevity in demanding applications. Outstanding machine protection is provided by features including a heavy-duty boom and arm, strong frame structure, heavy-duty underside plate and optional full-length track guard.

Proven reliability

Count on a solid EC950F with Volvo’s high-quality components, designed to work in perfect harmony with the machine. Volvo’s commitment to rigorous testing in its development process ensures the production of well-engineered components, purpose-built for the job, and proven to be reliable in the toughest applications.

Keeping costs down

Engineering machines which deliver outstanding results is just the start of how we can support your operation. As your partner we are here to help with every aspect of your Volvo machinery. Our portfolio of services is designed to complement your machine’s performance and boost your profitability.

Outstanding fuel efficiency

Achieve outstanding fuel efficiency with Volvo’s unique ECO Mode and electro-hydraulic system. ECO Mode optimizes the hydraulic system to reduce loss of flow and pressure, while the integrated work mode allows operators to choose the best work mode for the task at hand: select from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max).

Engine

The engine is a low emission, turbocharged air-to-air cooling, 4-stroke diesel engine with water cooling, direct injection controlled electronically, that meets EU Stage V requirements. The engine has been developed especially for excavator use, providing good fuel efficiency, low sound level and a long service life. Air Filter: 3-stage Automatic Idling System: Reduces the engine speed to idle when the controls and pedals are not activated resulting in less fuel consumption and low noise at basic level.

Fast cycle times

Cut cycle times to a minimum with the fully electro-hydraulic system. The optimized hydraulics system increases pump power for a fast and smooth operation.

Complete control

For a more efficient operation, the electro-hydraulic system puts superior control in the operator’s hands. Utilizing intelligent technology, the easy-to-use system controls on-demand flow and reduces internal losses in the hydraulic circuit. What’s more, the EC950F comes with a boom-swing priority valve.

Do more

Take on a range of tasks in the hard-working EC950F. The attachment management system enhances machine versatility by storing settings for up to 20 different attachments, enabling the operator to pre-set hydraulic flow and pressure through the in-cab monitor.

Swing system

The superstructure is slewed by two units of hydraulic piston motors with 2 stage planetary gear reduction box. Automatic swing holding brake and anti-rebound valve are equipped.

Hydraulic system

The hydraulic system, also known as the Automatic Sensing Work Mode, is designed for high-productivity, high-digging capacity, high-maneuvering precision and good fuel economy. The summation system, boom priority, arm priority, swing priority along with boom and arm regeneration provides optimum performance. The following important functions are included in the system: Summation system: Combines the flow of both hydraulic pumps to ensure quick cycle times and high productivity. Boom priority: Gives priority to the boom operation, for fast raising when loading or performing deep excavation. Arm priority: Gives priority to the arm operation, for faster cycle times in leveling and for increased bucket filling when digging. Swing priority: Gives priority to swing functions for faster working cycles. Regeneration system: Prevents cavitation and provides flow to other movements during simultaneous operations for maximum productivity. Holding valves: Boom and arm holding valves prevent the digging equipment from creeping.

Welcome to our world

Welcome to a world of industry leading machinery. A world where imagination, hard work and technological innovation will lead the way towards developing a future which is cleaner, smarter, and more connected. A world supported by the enduring values of the Volvo Group. A world of stability, sustainability and innovation. A world which we put our customers at the heart of. Welcome to the world of Volvo Construction Equipment – we think you’re going to like it here.

Comfortably productive

For operator convenience, all machine interfaces – including the joysticks, keypad and LCD monitor – are ergonomically positioned and designed for optimum control. The low-noise and spacious cab further enhances operator comfort and performance.

Cab

The operator’s cab has easy access via a wide door opening. The cab is supported on hydraulic dampening mounts to reduce shock and vibration levels. These along with a sound absorbing lining provide low noise levels. The cab has excellent all-round visibility. The front windshield can easily slide up into the ceiling, and the lower front glass can be removed and stored in the door. Integrated air conditioning and heating system: The pressurized and filtered cab air is supplied by automatically controlled fan. The air is distributed via 13 vents. Ergonomic operator’s seat: The adjustable seat and joystick consoles move independently to accommodate the operator. The seat has nine different adjustments and a seat belt to meet any operator’s comfort and safety.
