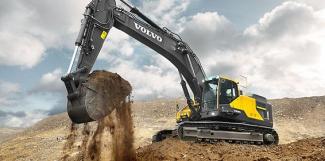

EC480EL Volvo excavator specs & Dimensions (2015 - 2018)
-
Model rating
- 10,00 / 10
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - EC480EL Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 47.96 t
- Transport length
- 11.61 m
- Transport width
- 3.44 m
- Transport height
- 3.28 m
- Bucket capacity
- 2.1 m³
- Track width
- 600 mm
- Boom
- MB
- Max. Reach horizontal
- 10.93 m
- Dredging depth
- 6.59 m
- Tear-out force
- 285 kN
- Bucket width
- 1.5 m
- Model series
- EC
- Engine manuf.
- Volvo
- Engine type
- D13J
- Engine power
- 278 kW
- Displacement
- 12.8 l
- Revolutions at max torque
- 1800 rpm
- Max. torque
- 1890/1350 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 131/158 mm
- Emission level
- 4/Tier 4 f
More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
Yes
- Cabin adjustment
-
No
- Overload alert
-
No
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
