EC400F NL Volvo excavator specs & Dimensions (2024 - 2026)

Weight: 41.55t – Transport length: 11.27m – Transport width: 3.29m – Transport height: 3.84m – Bucket capacity min.: 0.87m³ – Buck…

Weight: 41.55t – Transport length: 11.27m – Transport width: 3.29m – Transport height: 3.84m – Bucket capacity min.: 0.87m³ – Bucket capacity max.: 2.9m³

Check out detailed specifications, information and technical data for Volvo EC400F NL excavator manufactured between 2024 - 2026. Get more in-depth insight with Volvo EC400F NL digger specifications. See information, like: Weight: 41.55t – Transport length: 11.27m – Transport width: 3.29m – Transport height: 3.84m – Bucket capacity min.: 0.87m³ – Bucket capacity max.: 2.9m³ and more.

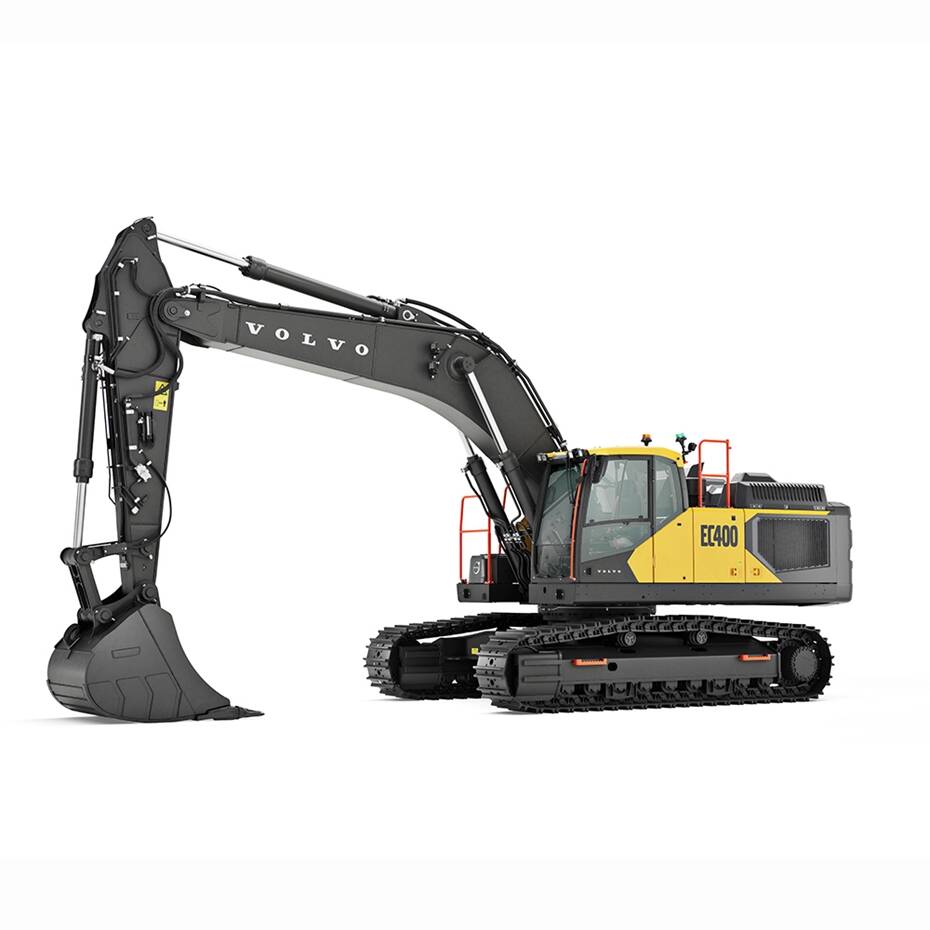

Crawler Excavators Volvo EC400F NL
Crawler Excavators Volvo EC400F NL
Crawler Excavators Volvo EC400F NL
Crawler Excavators Volvo EC400F NL

Visit Volvo live at

Technical specs - EC400F NL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
41.55 t
Transport length
11.27 m
Transport width
3.29 m
Transport height
3.84 m
Bucket capacity min.
0.87 m³
Bucket capacity max.
2.9 m³
Track width
900 mm
Boom
MB
Max. Reach horizontal
11.855 m
Dredging depth
8.29 m
Tear-out force
198 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D13J
Engine power
252 kW
Displacement
12.8 l
Revolutions at max torque
1600 rpm
Max. torque
1975/1200 Nm
No. of cylinders
6
Cylinder bore x stroke
131x158 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC400F NL FAQ

When was the Volvo EC400F NL manufactured?

The Volvo EC400F NL was first produced in 2024.

How much does the Volvo EC400F NL weigh?

The Volvo EC400F NL weighs 41.55 tons.

What are the transport dimensions of the Volvo EC400F NL crawler excavator?

The Volvo EC400F NL has a transport length of 11.27 meters, a transport width of 3.29 meters, and a transport height of 3.84 meters.

What is the track width of the Volvo EC400F NL's undercarriage?

The Volvo EC400F NL has a track width of 900 mm.

What are the excavation performance specifications of the Volvo EC400F NL?

The Volvo EC400F NL has a dredging depth of 8.29 meters, a maximum horizontal reach of 11.855 meters, and is equipped with a monobloc boom.

What is the power rating of the Volvo EC400F NL?

The source data does not provide power rating information for the Volvo EC400F NL.

What are the bucket capacity specifications of the Volvo EC400F NL?

The Volvo EC400F NL has a bucket capacity ranging from 0.87 to 2.9 cubic meters.

How much is a Volvo EC400F NL Crawler excavator (2024u20132025) worth?

The residual value of the Volvo EC400F NL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
