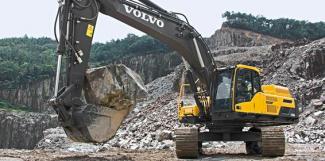

EC380DL Volvo excavator specs & Dimensions (2011 - 2015)
-
Model rating
- 7,38 / 10
.jpg)
.jpg)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - EC380DL Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 38.3 t
- Transport length
- 11.08 m
- Transport width
- 3.34 m
- Transport height
- 3.2 m
- Bucket capacity
- 2.3 m³
- Undercarriage
- LC
- Track width
- 600 mm
- Max. Reach horizontal
- 11.7 m
- Dredging depth
- 7.5 m
- Tear-out force
- 215 kN
- Model series
- EC
- Engine manuf.
- Volvo
- Engine type
- D 13 H
- Engine power
- 215 kW
- Displacement
- 12.8 l
- Revolutions at max torque
- 1300 rpm
More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket
Special equipment
- Diesel particulate filter
-
No
- Track adjustment
-
No
- Blade
-
No
- Cabin adjustment
-
No
- Overload alert
-
Yes
- Material Handling Excavator
-
No
- Aircondition
-
Yes
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
