EC350EL Hybrid Volvo excavator specs & Dimensions (2021 - 2026)

Volvo EC350EL Hybrid is a Crawler Excavator manufactured since 2021, with a weight of 36.78 t. It features a track width of 600 mm…

Volvo EC350EL Hybrid is a Crawler Excavator manufactured since 2021, with a weight of 36.78 t. It features a track width of 600 mm, a transport length of 11.295 m, a transport width of 3.19 m, and a transport height of 3.165 m. The excavator has a tear-out force of 187 kN, a dredging depth of 6.89 m, and a maximum horizontal reach of 10.6 m. The bucket width is 1.5 m, with a bucket capacity ranging from 0.87 m³ to 1.75 m³. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, a quick hitch hydraulic system, and track adjustment.

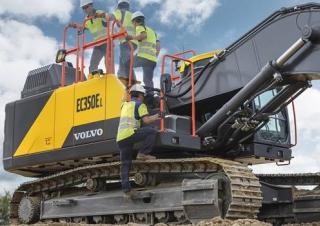

Crawler Excavators Volvo EC350EL Hybrid
Crawler Excavators Volvo EC350EL Hybrid
Crawler Excavators Volvo EC350EL Hybrid
Crawler Excavators Volvo EC350EL Hybrid

Visit Volvo live at

Technical specs - EC350EL Hybrid Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.78 t
Transport length
11.295 m
Transport width
3.19 m
Transport height
3.165 m
Bucket capacity
1.75 m³
Bucket capacity min.
0.87 m³
Bucket capacity max.
1.75 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.6 m
Dredging depth
6.89 m
Tear-out force
187 kN
Bucket width
1.5 m
Model series
EC
Engine manuf.
Volvo
Engine type
D8M
Engine power
220 kW
Displacement
7.7 l
Revolutions at max torque
1400 rpm
Max. torque
1400/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm
Emission level
V

More technical details, like: undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC350EL Hybrid FAQ

When was the Volvo EC350EL Hybrid manufactured?

The Volvo EC350EL Hybrid was first produced in 2021.

How much does the Volvo EC350EL Hybrid weigh?

The Volvo EC350EL Hybrid weighs 36.78 tons.

What are the transport dimensions of the Volvo EC350EL Hybrid?

The Volvo EC350EL Hybrid has a transport length of 11.3 meters, a transport width of 3.19 meters, and a transport height of 3.17 meters.

What is the fuel consumption range of the Volvo EC350EL Hybrid?

The fuel consumption range of the Volvo EC350EL Hybrid is 18 to 35 liters per hour.

What is the track width of the Volvo EC350EL Hybrid's undercarriage?

The track width of the Volvo EC350EL Hybrid's undercarriage is 600 mm.

What are the excavation performance specifications of the Volvo EC350EL Hybrid?

The Volvo EC350EL Hybrid has a dredging depth of 6.89 meters, a maximum horizontal reach of 10.6 meters, and is equipped with a monobloc boom.

What is the power rating of the Volvo EC350EL Hybrid?

The source data does not provide power rating information for the Volvo EC350EL Hybrid.

What are the specifications of the primary work tool bucket on the Volvo EC350EL Hybrid?

The primary work tool bucket of the Volvo EC350EL Hybrid has a capacity ranging from 0.87 to 1.75 cubic meters and a width of 1.5 meters.

How much is a Volvo EC350EL Hybrid Crawler excavator (2021u20132025) worth?

The residual value of the Volvo EC350EL Hybrid depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
