EC300F NL Volvo excavator specs & Dimensions (2025 - 2026)

Weight: 30.41t – Transport length: 10.495m – Transport width: 2.99m – Transport height: 3.47m – Bucket capacity min.: 0.52m³ – Buc…

Weight: 30.41t – Transport length: 10.495m – Transport width: 2.99m – Transport height: 3.47m – Bucket capacity min.: 0.52m³ – Bucket capacity max.: 2.06m³

Check out detailed specifications, information and technical data for Volvo EC300F NL excavator manufactured between 2025 - 2026. Get more in-depth insight with Volvo EC300F NL digger specifications. See information, like: Weight: 30.41t – Transport length: 10.495m – Transport width: 2.99m – Transport height: 3.47m – Bucket capacity min.: 0.52m³ – Bucket capacity max.: 2.06m³ and more.

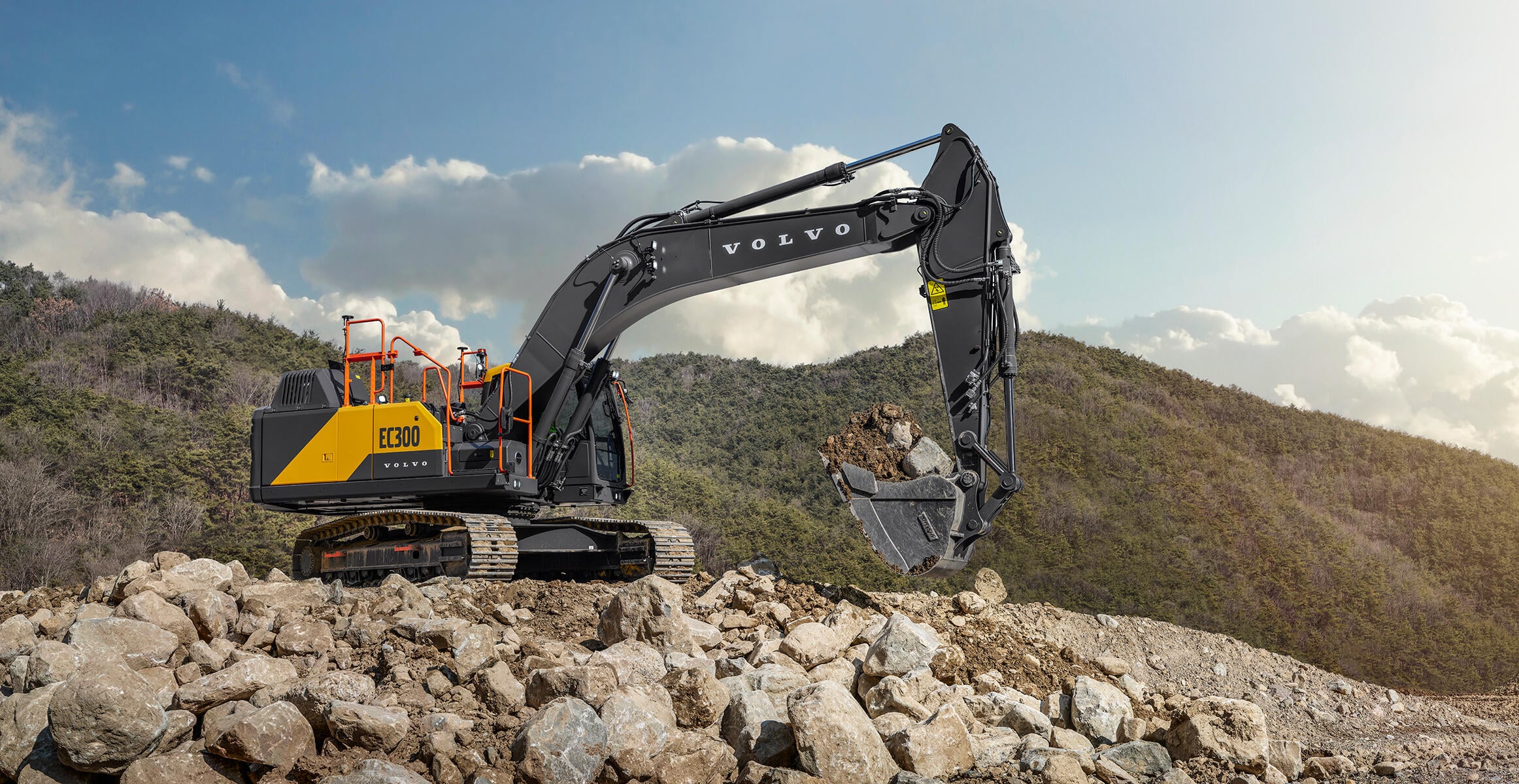

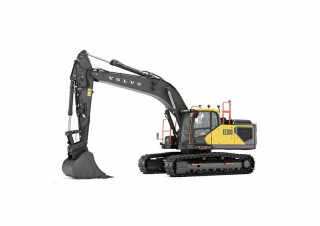

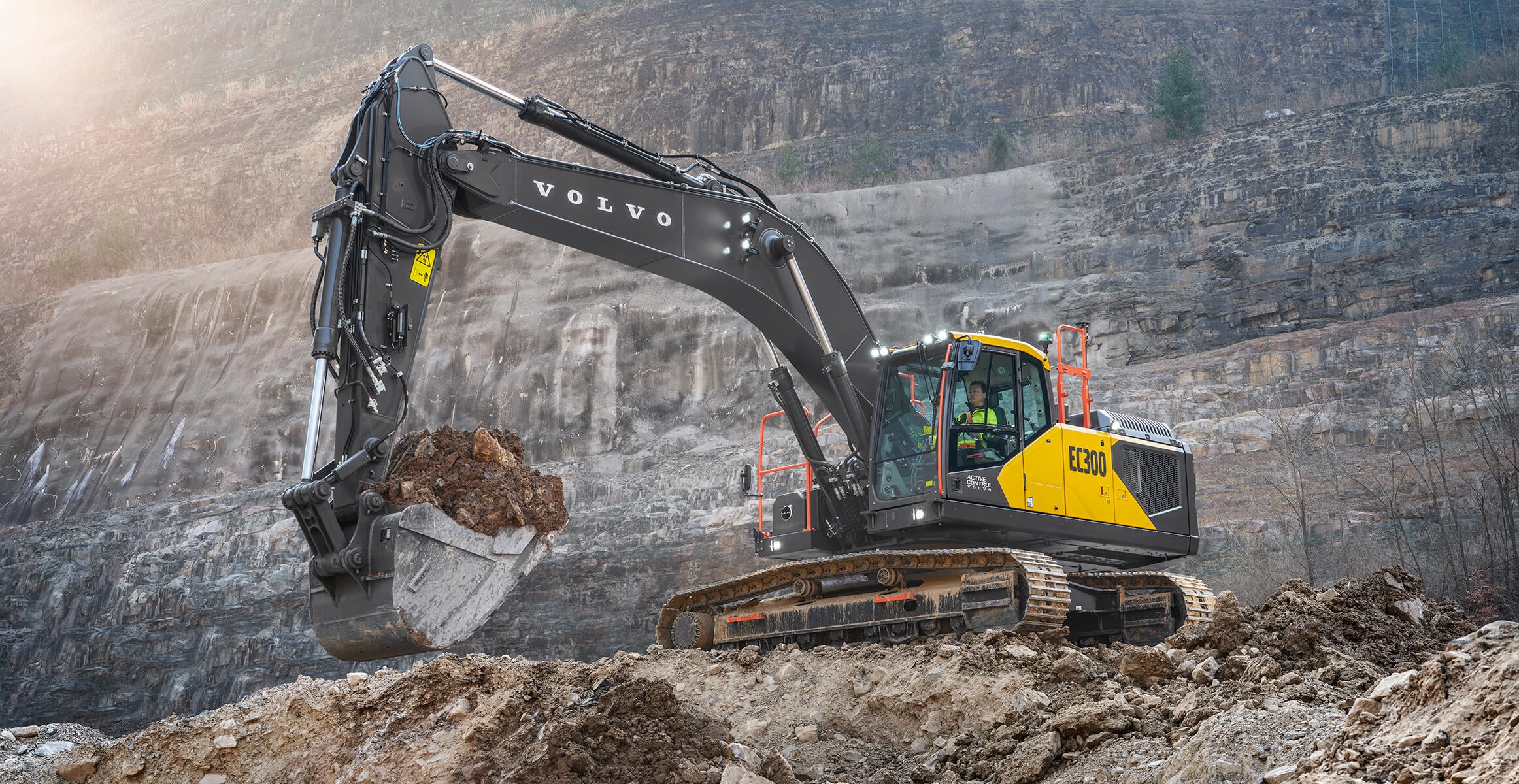

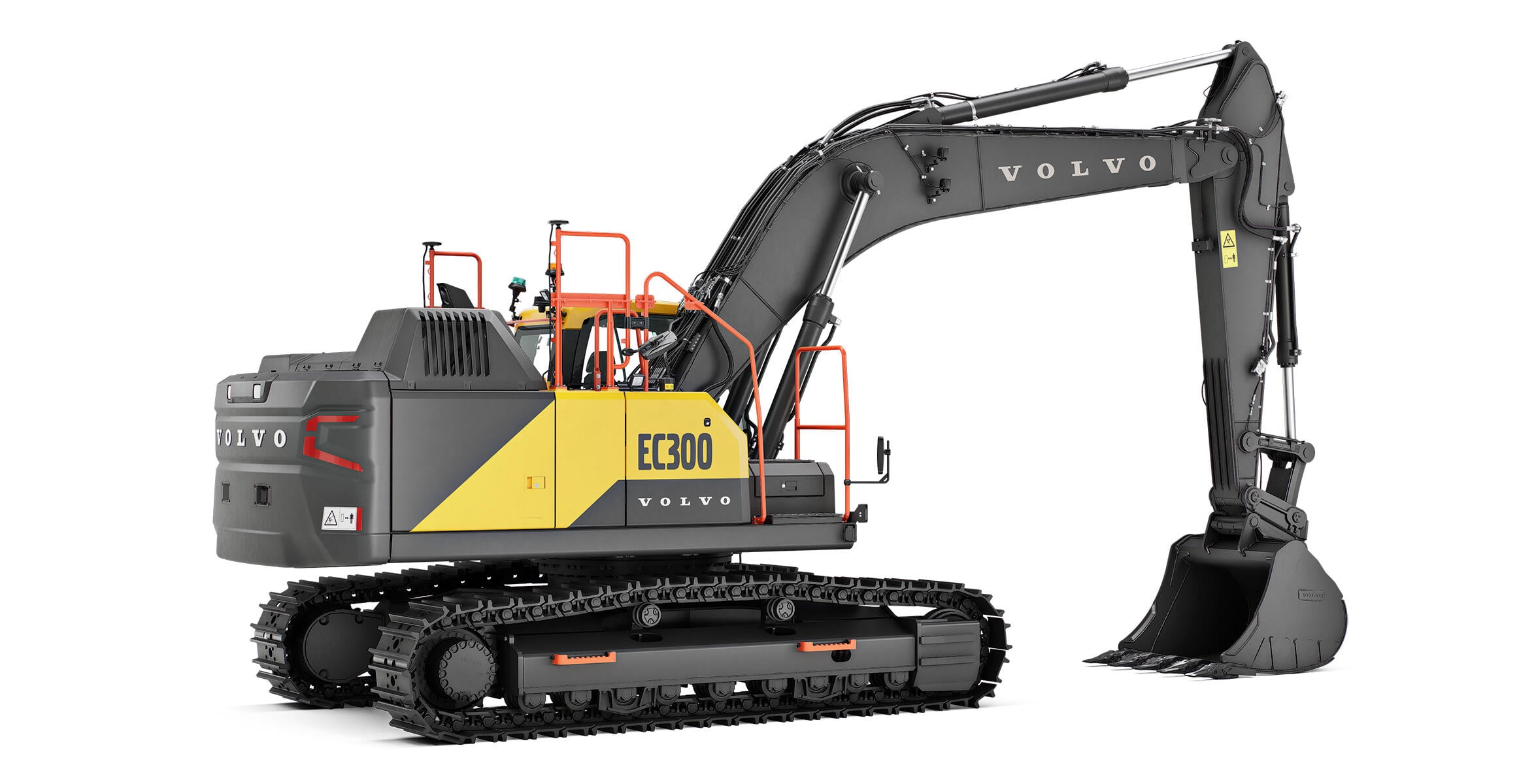

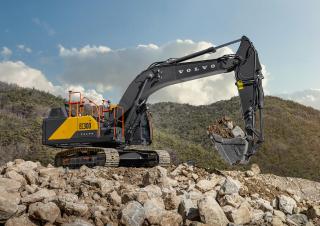

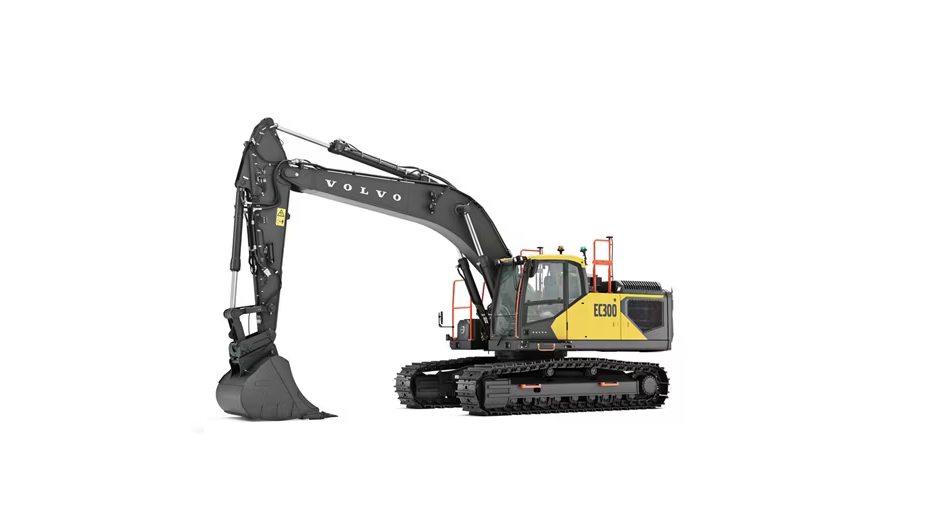

Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL
Crawler Excavators Volvo EC300F NL

Visit Volvo live at

Technical specs - EC300F NL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.41 t
Transport length
10.495 m
Transport width
2.99 m
Transport height
3.47 m
Bucket capacity min.
0.52 m³
Bucket capacity max.
2.06 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.715 m
Dredging depth
7.345 m
Tear-out force
164 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D8M
Engine power
189 kW
Displacement
7.7 l
Revolutions at max torque
1600 rpm
Max. torque
1400/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm
Emission level
V

More technical details, like: bucket capacity, undercarriage, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
