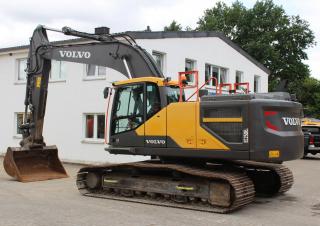

EC250EL Volvo excavator specs & Dimensions (2021 - 2026)

Volvo EC250EL is a Crawler Excavator manufactured since 2021, with a weight of 28.83 tons. It features a track width of 600 mm, a …

Volvo EC250EL is a Crawler Excavator manufactured since 2021, with a weight of 28.83 tons. It features a track width of 600 mm, a transport length of 10.3 meters, a transport width of 3.19 meters, and a transport height of 3.035 meters. The excavator has a tear-out force of 145 kN, a dredging depth of 6.59 meters, and a maximum horizontal reach of 9.96 meters. The bucket width is 1.74 meters, with a bucket capacity ranging from 0.56 m³ to 1.76 m³.

Crawler Excavators Volvo EC250EL
Crawler Excavators Volvo EC250EL
Crawler Excavators Volvo EC250EL
Crawler Excavators Volvo EC250EL

Visit Volvo live at

Technical specs - EC250EL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.83 t
Transport length
10.3 m
Transport width
3.19 m
Transport height
3.035 m
Bucket capacity
1.76 m³
Bucket capacity min.
0.56 m³
Bucket capacity max.
1.76 m³
Track width
600 mm
Max. Reach horizontal
9.96 m
Dredging depth
6.59 m
Tear-out force
145 kN
Bucket width
1.74 m
Model series
EC
Engine manuf.
Volvo
Engine type
D8M
Engine power
167 kW
Displacement
7.7 l
Revolutions at max torque
1350 rpm
Max. torque
1166 Nm
No. of cylinders
6
Cylinder bore x stroke
110x135 mm
Emission level
Stage V

More technical details, like: undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC250EL FAQ

When was the Volvo EC250EL manufactured?

The Volvo EC250EL was first produced in 2021.

How much does the Volvo EC250EL weigh?

The Volvo EC250EL weighs 28.83 tons.

What are the transport dimensions of the Volvo EC250EL crawler excavator?

The Volvo EC250EL has a transport length of 10.3 meters, a transport width of 3.19 meters, and a transport height of 3.04 meters.

What is the fuel consumption range of the Volvo EC250EL?

The Volvo EC250EL has a fuel consumption range of 10 to 20 liters per hour.

What is the track width of the Volvo EC250EL's undercarriage?

The Volvo EC250EL has a track width of 600 mm.

What is the excavation performance of the Volvo EC250EL?

The Volvo EC250EL has a dredging depth of 6.59 meters and a maximum horizontal reach of 9.96 meters.

What power rating information is available for the Volvo EC250EL?

The source data does not provide any power rating information for the Volvo EC250EL.

What are the specifications of the bucket on the Volvo EC250EL crawler excavator?

The Volvo EC250EL crawler excavator has a bucket capacity ranging from 0.56 to 1.76 cubic meters, with a bucket width of 1.74 meters.

How much is a Volvo EC250EL Crawler excavator (2021u20132025) worth?

The residual value of the Volvo EC250EL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
