EC220DN Volvo excavator specs & Dimensions (2015 - 2016)

Model rating
10,00 / 10

Volvo EC220DN is a Crawler Excavator manufactured from 2015 to 2016, with a weight of 22.5 t. It features a track width of 800 mm,…

Volvo EC220DN is a Crawler Excavator manufactured from 2015 to 2016, with a weight of 22.5 t. It features a track width of 800 mm, a transport length of 9.795 m, a transport width of 2.8 m, and a transport height of 2.93 m. The machine has a tear-out force of 150 kN and comes equipped with air conditioning and a blade.

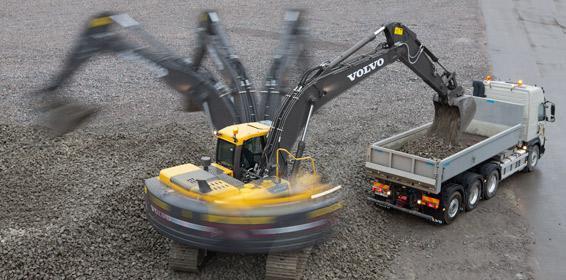

Crawler Excavators Volvo EC220DN
Crawler Excavators Volvo EC220DN
Crawler Excavators Volvo EC220DN
Crawler Excavators Volvo EC220DN

Visit Volvo live at

Technical specs - EC220DN Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.5 t
Transport length
9.795 m
Transport width
2.8 m
Transport height
2.93 m
Bucket capacity
1.35 m³
Track width
800 mm
Boom
MB
Max. Reach horizontal
9.09 m
Dredging depth
5.83 m
Tear-out force
150 kN
Bucket width
1.5 m
Model series
EC
Engine manuf.
Volvo
Engine type
D 6 H
Engine power
129 kW
Displacement
5.7 l
Revolutions at max torque
1350 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC220DN FAQ

When was the Volvo EC220DN manufactured?

The Volvo EC220DN was manufactured from 2015 to 2016.

How much does the Volvo EC220DN weigh?

The Volvo EC220DN weighs 22.5 tons.

What are the transport dimensions of the Volvo EC220DN crawler excavator?

The Volvo EC220DN has a transport length of 9.8 meters, a transport width of 2.8 meters, and a transport height of 2.93 meters.

What is the track width of the Volvo EC220DN's undercarriage?

The Volvo EC220DN has a track width of 800 mm on its undercarriage.

What are the excavation performance specifications of the Volvo EC220DN?

The Volvo EC220DN has a dredging depth of 5.83 meters, a maximum horizontal reach of 9.09 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EC220DN?

The Volvo EC220DN has a tear-out force of 150 kN.

What are the specifications of the primary work tool bucket on the Volvo EC220DN?

The primary work tool bucket of the Volvo EC220DN has a capacity of 1.35 cubic meters and a width of 1.5 meters.

How much is a Volvo EC220DN Crawler excavator (2015u20132016) worth?

The residual value of the Volvo EC220DN depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
