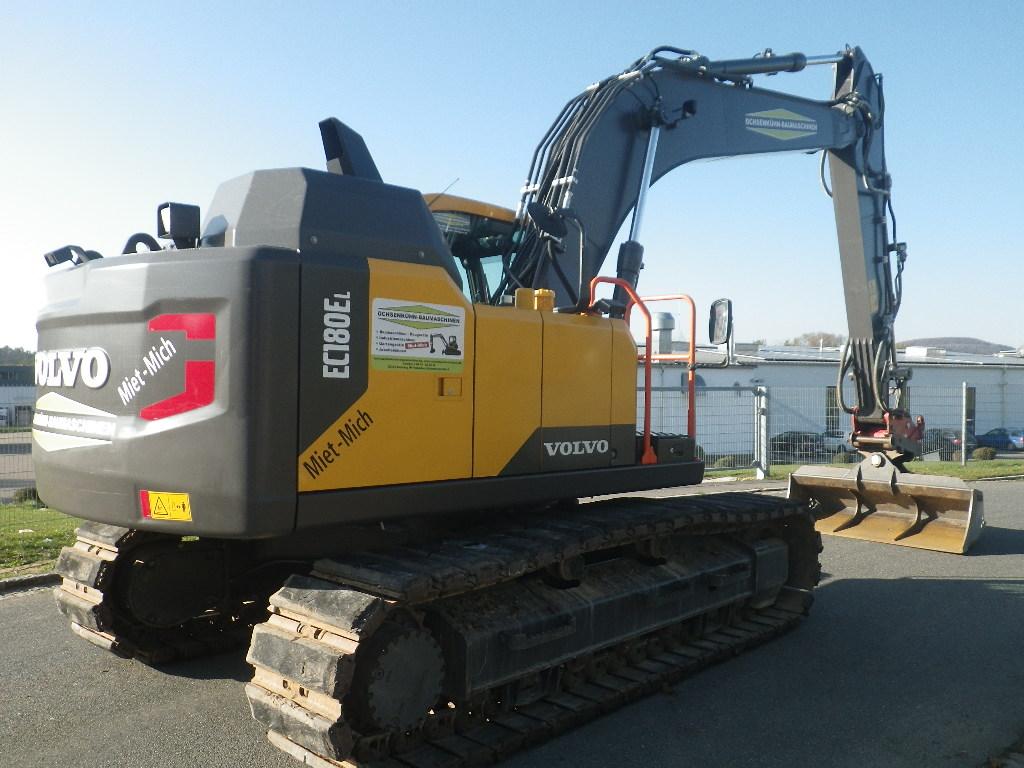

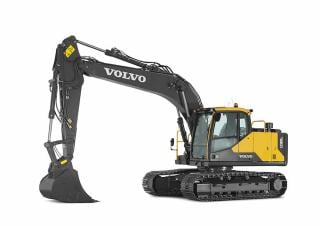

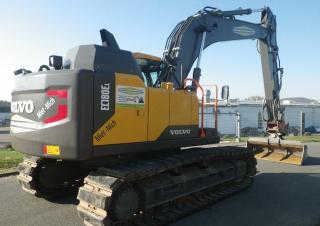

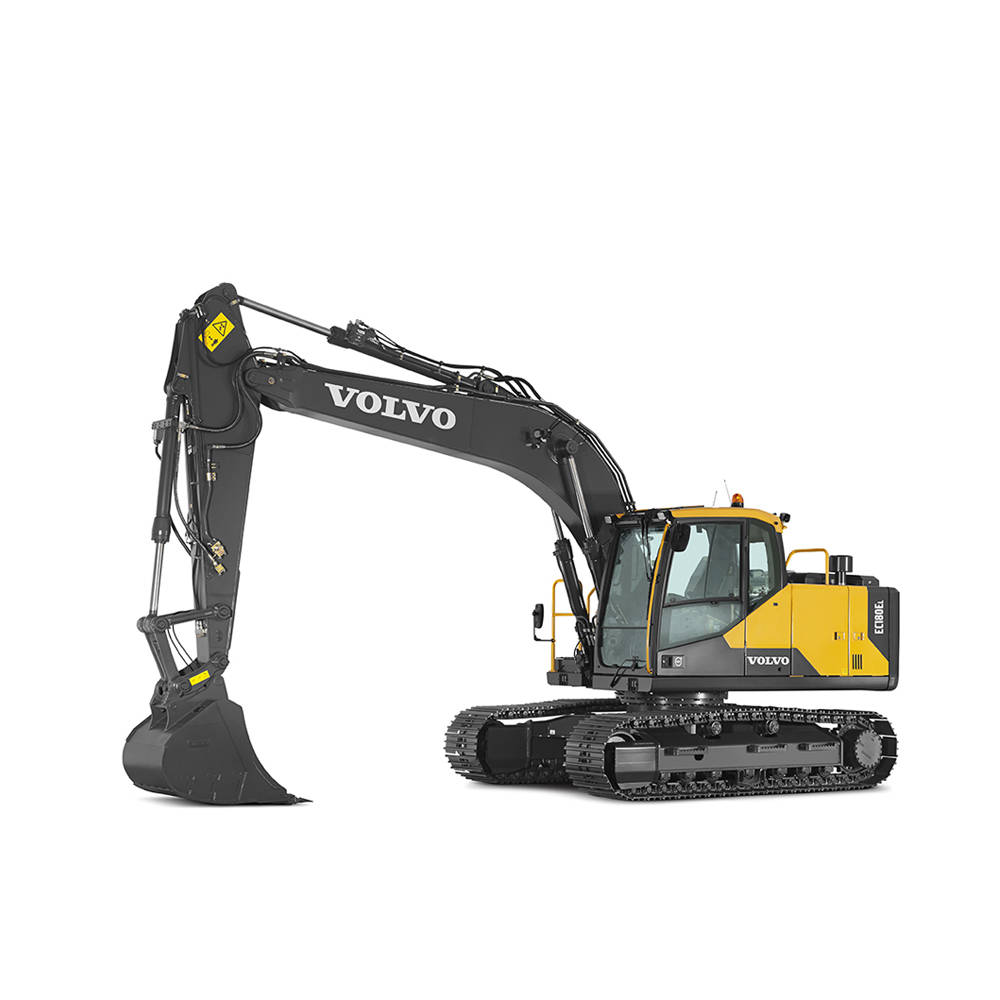

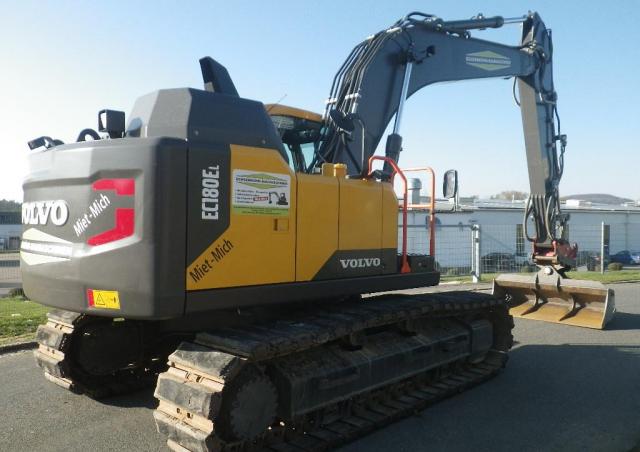

EC180EL Volvo excavator specs & Dimensions (2021 - 2026)

Designed to fit your needs

There is a lot riding on creating solutions that are suited to the particular needs of different industry applications. Innovation often involves high technology – but it doesn’t always have to. Some of our best ideas have been simple, based on a clear and deep understanding of our customers’ working lives.

Service access

Easy access for maintenance means regular checks are completed faster – increasing uptime and driving down total cost of ownership. The E-series features a new convenient and safe access such as guardrails - to check the hydraulic tank, fuel tank and AdBlue. This is in addition to the easily accessible side entry, through a wide compartment door.

Quick couplers with front pin lock

Volvo offers a full range of quick couplers, from its dedicated Volvo S-type coupler to the Steelwrist ones. Both couplers feature Front Pin Lock technology, which allows supreme safety when changing attachments. Those innovative couplers are not only designed to fit perfectly with Volvo excavators but they also complies with the latest safety regulations of ISO 13031 and EN474-1.

Volvo engine

Featuring proven advanced technology, and built on decades of experience, Volvo’s robust D4 Stage V engine boasts more power - while reducing both fuel consumption and emissions to deliver superior quality, reliability and durability.

Increased power

The increased engine power combined with the increased pump input power creates a highly responsive combined operation and travel. It also produces faster cycle times and low fuel consumption which leads to higher productivity.

Boom float function

With the boom float function, the pump power for boom lowering can be saved or used for other functions, reducing the cycle time. Also, the grading operation can be made easier.

Auto engine shutdown

To reduce fuel consumption, the engine will automatically switch off when the machine is inactive for a pre-set amount of time (five minutes is the default setting).

Main Control Valve and Software

This valve is compatible with software in the machine – building on the already superior controllability by providing a smooth and easy operation. It is also compatible with Volvo’s ECO mode – this provides electronic pump control to enhance fuel efficiency.

Optimized hydraulics system

The hydraulics system, combined with the fully electronic control system and advanced ECO mode, has been optimized to work in harmony with D4 Stage V engine to match the engine power, reduce power loss and improve controllability and response time.

Fits with Variety

To maximize customer productivity and profitability, the EC160E and EC180E have been designed to not only be compatible with a range of attachments, but to enhance their performance by easily and quickly switching to accommodate any needs.

Mix and match for a superior fit

Maximize your productivity and profitability with Volvo’s EC160E and EC180E crawler excavators and a range of durable attachments. Increase your versatility, access more applications and perform a variety of tasks – all while experiencing faster cycle times and excellent control.

Attachment Management System

The password protected management system allows storage for up to 20 different attachments. It pre-sets and permits hydraulic flow and pressure to be adjusted within the cab, which ensures the use of various attachments for increased versatility.

Single layer cooling system

The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer, to maximize efficiency, reduce blockages and aid cleaning. The system is easily accessed from ground level by simply opening the side door.

Undercarriage

The idlers, track links, upper and bottom rollers are built to withstand all elements and terrain, to create improved long-lasting durability and support maximum uptime.

Boom and Arm

The robust design includes internal plates positioned to support pressure points during the range of applications. This helps disperse the stress from high-pressure areas of the boom and arm, to ensure maximum productivity time after time, during the most demanding applications.

Lower frame

The intelligently designed X-shape lower frame enables even weight distribution increasing stability and durability - preventing damage from rock and debris.

Human Machine Interface (HMI)

All machine interfaces – including joysticks, keypad, panel and larger LCD monitor – are ergonomically designed for optimum control and efficiency, resulting in increased productivity and workplace wellbeing. The number of switches have been simplified and climate control integrated into the keypad for easy adjustments.

Ergonomic Design

The EC160E and EC180E have been ergonomically designed for convenience and ease of use, allowing the operator to take control in comfort. The spacious cab design, controls and features are the industry first choice, while aimed at increasing productivity by ensuring the machine takes the strain and not the operator.

Side view camera

As well as the rear view camera, side view camera can be optionally available for customers’ comfort. Both views are displayed on the colour monitor, creating a safer working environment, protecting the operator and personnel on the ground.

Short-cut key

For added convenience, functions such as windshield wipers, cameras, auto-mute or power max function can all be assigned a short-cut button on the joystick. This allows the operator to select a function during the application without disruption.

Bluetooth

To aid operator convenience and support better productivity, you can now connect a Bluetooth device to the machine enabling the handsfree function. Additionally, Bluetooth and hands-free functions have been added, allowing the operator to connect to wireless functions for increased comfort and safety.

Rops

The cab features ROPS – this reinforced steel structure ensures the operator is protected in the unlikely event of the machine rolling over, while it also meets the ISO standards for safety.

Response mode

The attachment response sensitivity can be adjusted using the keypad. This allows the operator to tailor machine response for maximum impact in different environments.

Seatbelt warning alarm

If the seatbelt is not buckled when the ignition key is turned, an alarm is triggered in intervals along with a continuous visual alert. This emphasises our priority for operator safety.
