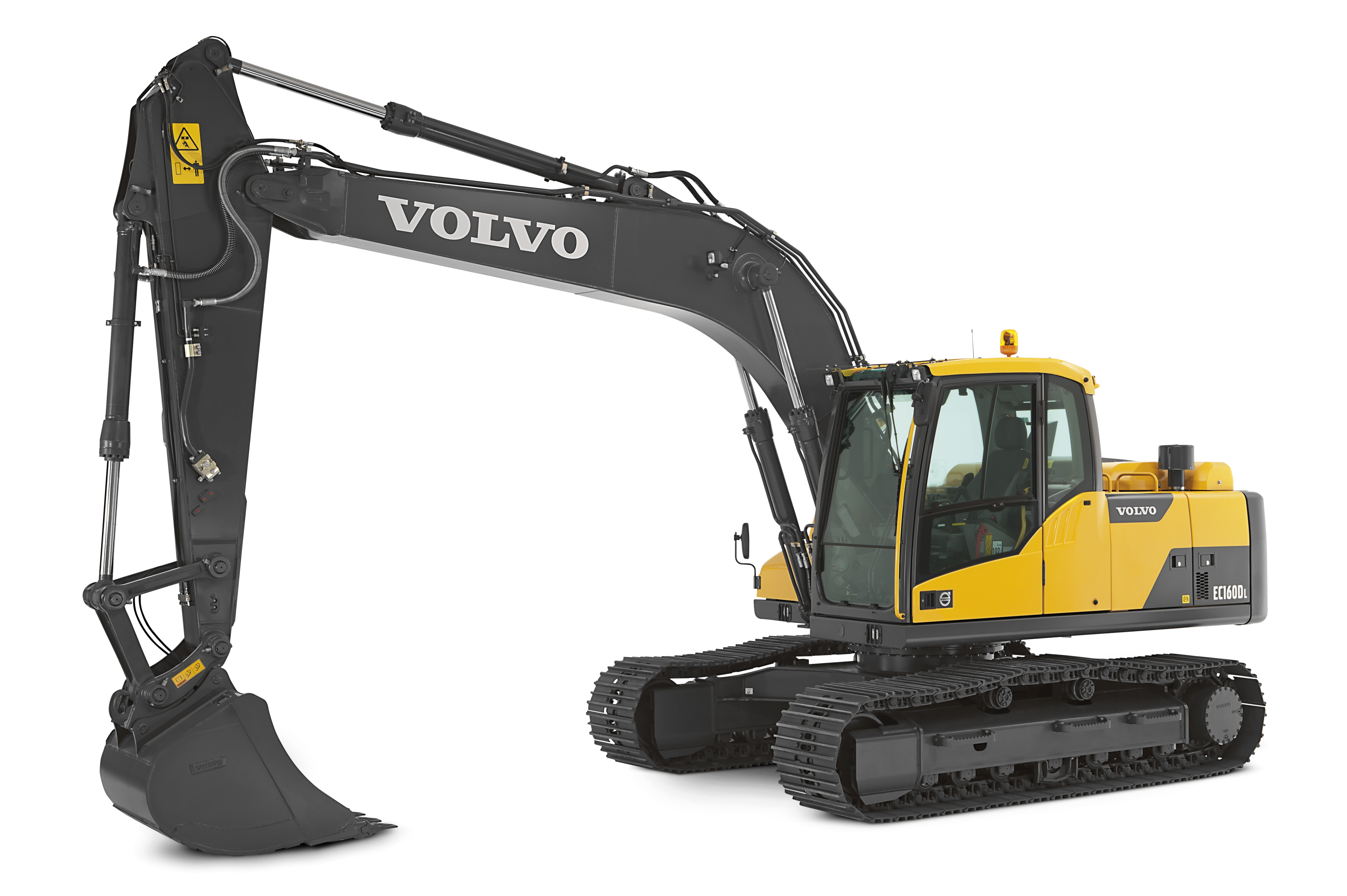

EC160DNL Volvo excavator specs & Dimensions (2012 - 2016)

Volvo EC160DNL is a crawler excavator manufactured from 2012 to 2016, with a weight of 16.8 tons. It features a track width of 600…

Volvo EC160DNL is a crawler excavator manufactured from 2012 to 2016, with a weight of 16.8 tons. It features a track width of 600 mm, a transport length of 8.78 meters, a transport width of 2.59 meters, and a transport height of 2.9 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Volvo EC160DNL
Crawler Excavators Volvo EC160DNL
Crawler Excavators Volvo EC160DNL
Crawler Excavators Volvo EC160DNL

Visit Volvo live at

Technical specs - EC160DNL Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.8 t
Transport length
8.78 m
Transport width
2.59 m
Transport height
2.9 m
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
8.97 m
Dredging depth
6.04 m
Tear-out force
121.3 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D 4 H
Engine power
104 kW
Displacement
4 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC160DNL FAQ

When was the Volvo EC160DNL manufactured?

The Volvo EC160DNL was manufactured from 2012 to 2016.

How much does the Volvo EC160DNL weigh?

The Volvo EC160DNL weighs 16.8 tons.

What are the transport dimensions of the Volvo EC160DNL?

The Volvo EC160DNL has a transport length of 8.78 meters, a transport width of 2.59 meters, and a transport height of 2.9 meters.

What are the undercarriage specifications of the Volvo EC160DNL?

The Volvo EC160DNL has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC160DNL?

The Volvo EC160DNL has a dredging depth of 6.04 meters and a maximum horizontal reach of 8.97 meters.

What are the power ratings of the Volvo EC160DNL?

The source data does not provide any power ratings for the Volvo EC160DNL.

How much is a Volvo EC160DNL Crawler excavator (2012u20132016) worth?

The residual value of the Volvo EC160DNL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
