EC140B Prime Volvo excavator specs & Dimensions (2019 - 2021)

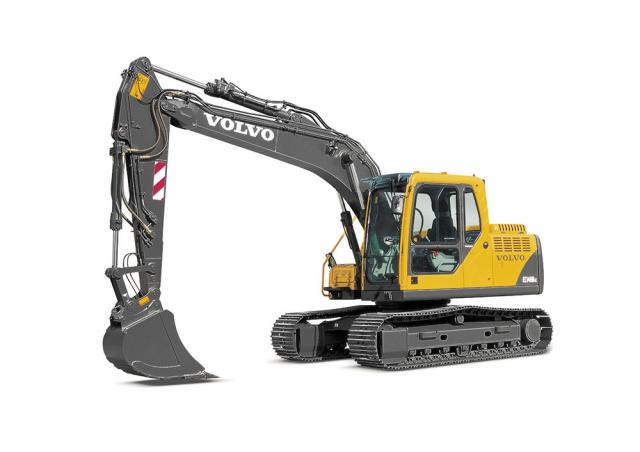

Volvo EC140B Prime is a Crawler Excavator manufactured from 2019 to 2021. It has a weight of 15.6 tons and a track width of 600 mm…

Volvo EC140B Prime is a Crawler Excavator manufactured from 2019 to 2021. It has a weight of 15.6 tons and a track width of 600 mm. The transport dimensions are 7.7 meters in length, 2.59 meters in width, and 2.71 meters in height. The excavator features a tear-out force of 62 kN, a dredging depth of 5.5 meters, and a maximum horizontal reach of 8.3 meters. The bucket capacity is 0.93 cubic meters.

Crawler Excavators Volvo EC140B Prime

Visit Volvo live at

Technical specs - EC140B Prime Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.6 t
Transport length
7.7 m
Transport width
2.59 m
Transport height
2.71 m
Bucket capacity
0.93 m³
Track width
600 mm
Max. Reach horizontal
8.3 m
Dredging depth
5.5 m
Tear-out force
62 kN
Model series
EC
Engine manuf.
Volvo
Engine type
D4D
Engine power
73 kW
Displacement
4 l
Revolutions at max torque
2100 rpm
Max. torque
390 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC140B Prime FAQ

When was the Volvo EC140B Prime manufactured?

The Volvo EC140B Prime was manufactured from 2019 to 2021.

How much does the Volvo EC140B Prime weigh?

The Volvo EC140B Prime weighs 15.6 tons.

What are the transport dimensions of the Volvo EC140B Prime?

The Volvo EC140B Prime has a transport length of 7.7 meters, a transport width of 2.59 meters, and a transport height of 2.71 meters.

What is the track width of the Volvo EC140B Prime's undercarriage?

The Volvo EC140B Prime has a track width of 600 mm.

What are the excavation performance specifications of the Volvo EC140B Prime?

The Volvo EC140B Prime has a dredging depth of 5.5 meters and a maximum horizontal reach of 8.3 meters.

What is the tear-out force of the Volvo EC140B Prime?

The Volvo EC140B Prime has a tear-out force of 62 kN.

What is the bucket capacity of the Volvo EC140B Prime?

The bucket capacity of the Volvo EC140B Prime is 0.93 cubic meters.

How much is a Volvo EC140B Prime Crawler excavator (2019u20132021) worth?

The residual value of the Volvo EC140B Prime depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
