EC135B LC Volvo excavator specs & Dimensions (2005 - 2007)

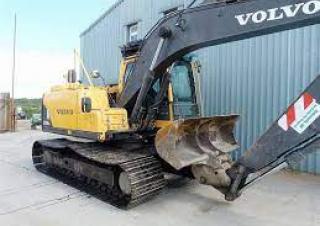

Volvo EC135B LC is a Crawler Excavator manufactured from 2005 to 2007. It has a weight of 13.81 tons and a track width of 700 mm. …

Volvo EC135B LC is a Crawler Excavator manufactured from 2005 to 2007. It has a weight of 13.81 tons and a track width of 700 mm. The transport dimensions are 7.51 meters in length, 2.69 meters in width, and 3.21 meters in height. The excavator features a tear-out force of 59.8 kN, a dredging depth of 6.03 meters, and a maximum horizontal reach of 8.69 meters. The bucket capacity is 0.8 cubic meters.

Crawler Excavators Volvo EC135B LC

Visit Volvo live at

Technical specs - EC135B LC Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.81 t
Transport length
7.51 m
Transport width
2.69 m
Transport height
3.21 m
Bucket capacity
0.8 m³
Track width
700 mm
Max. Reach horizontal
8.69 m
Dredging depth
6.03 m
Tear-out force
59.8 kN
Engine manuf.
Volvo
Engine type
D4D EBE2
Engine power
73 kW
Displacement
4 l
Revolutions at max torque
2100 rpm
Max. torque
390/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
101x126 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EC135B LC FAQ

When was the Volvo EC135B LC manufactured?

The Volvo EC135B LC was manufactured from 2005 to 2007.

How much does the Volvo EC135B LC weigh?

The Volvo EC135B LC weighs 13.81 tons.

What are the transport dimensions of the Volvo EC135B LC crawler excavator?

The Volvo EC135B LC crawler excavator has a transport length of 7.51 meters, a transport width of 2.69 meters, and a transport height of 3.21 meters.

What is the track width of the Volvo EC135B LC's undercarriage?

The Volvo EC135B LC has a track width of 700 mm in its undercarriage.

What are the excavation specifications of the Volvo EC135B LC?

The Volvo EC135B LC has a dredging depth of 6.03 meters and a maximum horizontal reach of 8.69 meters.

What power ratings are available for the Volvo EC135B LC?

There are no power rating specifications available for the Volvo EC135B LC in the provided data.

What is the bucket capacity of the Volvo EC135B LC excavator?

The Volvo EC135B LC excavator has a bucket capacity of 0.8 cubic meters.

How much is a Volvo EC135B LC Crawler excavator (2005u20132007) worth?

The residual value of the Volvo EC135B LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Volvo EC135B LC overview

Engine

Engine

The engine is a turbocharged, 4-stroke diesel engine with water cooling, and direct injection that easily meets EU Step 2 requirements. The engine has been developed especially for excavator use, providing good fuel economy, low noise levels and a long service life.


Hydraulic and electronic system

Slew system

The superstructure is slewed by the means of an axial piston motor and a planetary reduction gear. Automatic slew holding brake and anti-rebound valve are standard.


Drive

Each track is powered by an automatic two-speed travel motor. The track brakes are multi-disc, spring-applied and hydraulically released. The travel motor, brake and planetary gears are well protected within the track frame.


Equipment

Electrical system

High capacity electrical system that is well-protected. Waterproof double-lock harness plugs are used to secure corrosion free connections. The main relays and solenoid valves are shielded to prevent damage. The master switch is standard.
