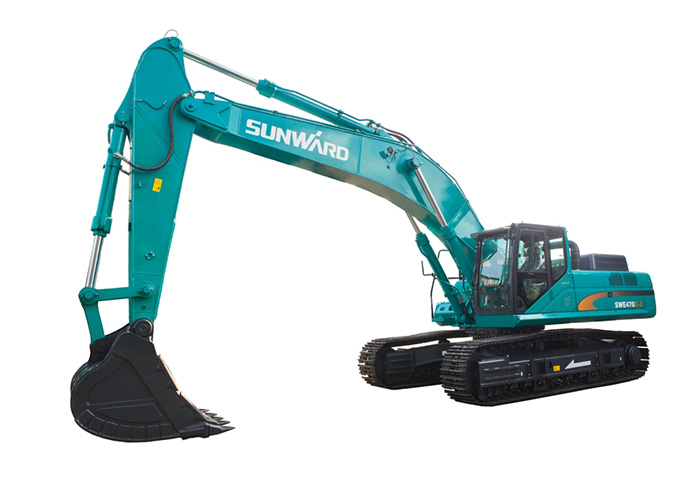

SWE470E-3 Sunward excavator specs & Dimensions (2020 - 2025)

Sunward SWE470E-3 is a crawler excavator manufactured since 2020, with a weight of 47 tons. It features a track width of 600 mm, a…

Sunward SWE470E-3 is a crawler excavator manufactured since 2020, with a weight of 47 tons. It features a track width of 600 mm, a transport length of 12.02 meters, a transport width of 3.48 meters, and a transport height of 3.63 meters. The machine has a tear-out force of 311 kN, a dredging depth of 7.86 meters, and a maximum horizontal reach of 11.85 meters. The bucket width is 1.58 meters, and the bucket capacity is 2.2 cubic meters.

Crawler Excavators Sunward SWE470E-3

Technical specs - SWE470E-3 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47 t
Transport length
12.02 m
Transport width
3.48 m
Transport height
3.63 m
Bucket capacity
2.2 m³
Track width
600 mm
Max. Reach horizontal
11.85 m
Dredging depth
7.86 m
Tear-out force
311 kN
Bucket width
1.58 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSM11
Engine power
250 kW
Displacement
10.8 l
Revolutions at max torque
1400 rpm
Max. torque
1830 Nm
No. of cylinders
6
Cylinder bore x stroke
125x147 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE470E-3 FAQ

When was the Sunward SWE470E-3 manufactured?

The Sunward SWE470E-3 was first produced in 2020.

How much does the Sunward SWE470E-3 weigh?

The Sunward SWE470E-3 weighs 47 tons.

What are the transport dimensions of the Sunward SWE470E-3?

The Sunward SWE470E-3 has a transport length of 12.02 meters, a transport width of 3.48 meters, and a transport height of 3.63 meters.

What is the track width of the Sunward SWE470E-3 crawler excavator?

The Sunward SWE470E-3 crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Sunward SWE470E-3?

The Sunward SWE470E-3 has a dredging depth of 7.86 meters and a maximum horizontal reach of 11.85 meters.

What is the tear-out force of the Sunward SWE470E-3, given that no power ratings are provided?

The Sunward SWE470E-3 has a tear-out force of 311 kN. No power ratings are provided in the available data.

What are the specifications of the primary work tool bucket on the Sunward SWE470E-3?

The primary work tool bucket of the Sunward SWE470E-3 has a capacity of 2.2 cubic meters and a width of 1.58 meters.

How much is a Sunward SWE470E-3 Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE470E-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
