SWE365F Sunward excavator specs & Dimensions (2020 - 2026)

Sunward SWE365F is a crawler excavator manufactured since 2020, with a weight of 35.56 tons. It features a track width of 700 mm, …

Sunward SWE365F is a crawler excavator manufactured since 2020, with a weight of 35.56 tons. It features a track width of 700 mm, a transport length of 11.38 meters, a transport width of 3.1 meters, and a transport height of 3.4 meters. The machine has a tear-out force of 250 kN, a dredging depth of 7.46 meters, and a maximum horizontal reach of 11.32 meters.

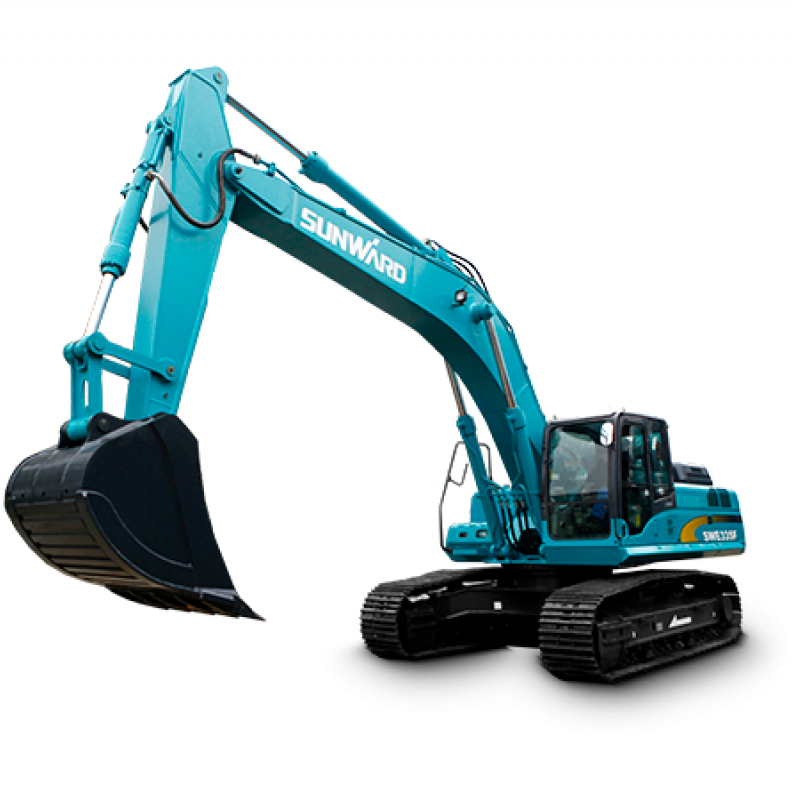

Crawler Excavators Sunward SWE365F

Technical specs - SWE365F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.56 t
Transport length
11.38 m
Transport width
3.1 m
Transport height
3.4 m
Track width
700 mm
Max. Reach horizontal
11.32 m
Dredging depth
7.46 m
Tear-out force
250 kN
Model series
SWE
Engine manuf.
Cummins
Engine type
QSL9-300
Engine power
248 kW
Displacement
9 l
Emission level
T4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE365F FAQ

When was the Sunward SWE365F manufactured?

The Sunward SWE365F was first produced in 2020.

How much does the Sunward SWE365F weigh?

The Sunward SWE365F weighs 35.56 tons.

What are the transport dimensions of the Sunward SWE365F crawler excavator?

The Sunward SWE365F crawler excavator has a transport length of 11.38 meters, a transport width of 3.1 meters, and a transport height of 3.4 meters.

What is the track width of the Sunward SWE365F crawler excavator?

The Sunward SWE365F crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Sunward SWE365F?

The Sunward SWE365F has a dredging depth of 7.46 meters and a maximum horizontal reach of 11.32 meters.

What are the power ratings of the Sunward SWE365F?

There are no power rating specifications available for the Sunward SWE365F in the provided data.

How much is a Sunward SWE365F Crawler excavator (2020u20132025) worth?

The residual value of the Sunward SWE365F depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
