SWE365E-3 Sunward excavator specs & Dimensions (2020 - 2025)

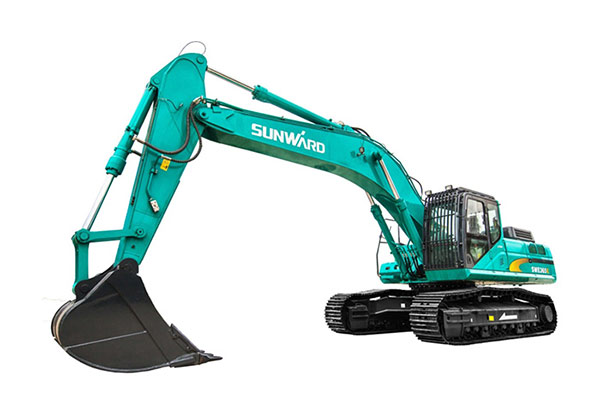

Sunward SWE365E-3 is a Crawler Excavator manufactured since 2020. It has a weight of 36.2 tons and a track width of 600 mm. The tr…

Sunward SWE365E-3 is a Crawler Excavator manufactured since 2020. It has a weight of 36.2 tons and a track width of 600 mm. The transport dimensions are 2.9 meters in length, 3.19 meters in width, and 3.5 meters in height. The excavator features a tear-out force of 253 kN, a dredging depth of 7.1 meters, and a maximum horizontal reach of 10.73 meters. The bucket width is 1.34 meters with a capacity of 1.6 cubic meters.

Crawler Excavators Sunward SWE365E-3

Technical specs - SWE365E-3 Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.2 t
Transport length
2.9 m
Transport width
3.19 m
Transport height
3.5 m
Bucket capacity
1.6 m³
Track width
600 mm
Max. Reach horizontal
10.73 m
Dredging depth
7.1 m
Tear-out force
253 kN
Bucket width
1.34 m
Model series
SWE
Engine manuf.
Cummins
Engine type
QSL9
Engine power
222 kW
Displacement
8.9 l
Revolutions at max torque
1400 rpm
Max. torque
1505 Nm
No. of cylinders
6
Cylinder bore x stroke
114x145 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sunward SWE365E-3 FAQ

When was the Sunward SWE365E-3 manufactured?

The Sunward SWE365E-3 was first produced in 2020.

How much does the Sunward SWE365E-3 weigh?

The Sunward SWE365E-3 weighs 36.2 tons.

What are the transport dimensions of the Sunward SWE365E-3 crawler excavator?

The Sunward SWE365E-3 has a transport length of 2.9 meters, a transport width of 3.19 meters, and a transport height of 3.5 meters.

What is the track width of the Sunward SWE365E-3 crawler excavator?

The Sunward SWE365E-3 crawler excavator has a track width of 600 mm.

What is the excavation performance of the Sunward SWE365E-3?

The Sunward SWE365E-3 has a dredging depth of 7.1 meters and a maximum horizontal reach of 10.73 meters.

What is the tear-out force of the Sunward SWE365E-3?

The Sunward SWE365E-3 has a tear-out force of 253 kN.

What are the specifications of the bucket on the Sunward SWE365E-3 crawler excavator?

The bucket of the Sunward SWE365E-3 has a capacity of 1.6 cubic meters and a width of 1.34 meters.
