SWE335F Sunward excavator specs & Dimensions (2025 - 2026)

Weight: 33.6t – Transport length: 10.866m – Transport width: 3.19m – Transport height: 3.6m – Bucket capacity: 1.7m³ – Track width…

Weight: 33.6t – Transport length: 10.866m – Transport width: 3.19m – Transport height: 3.6m – Bucket capacity: 1.7m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Sunward SWE335F excavator manufactured between 2025 - 2026. Get more in-depth insight with Sunward SWE335F digger specifications. See information, like: Weight: 33.6t – Transport length: 10.866m – Transport width: 3.19m – Transport height: 3.6m – Bucket capacity: 1.7m³ – Track width: 600mm and more.

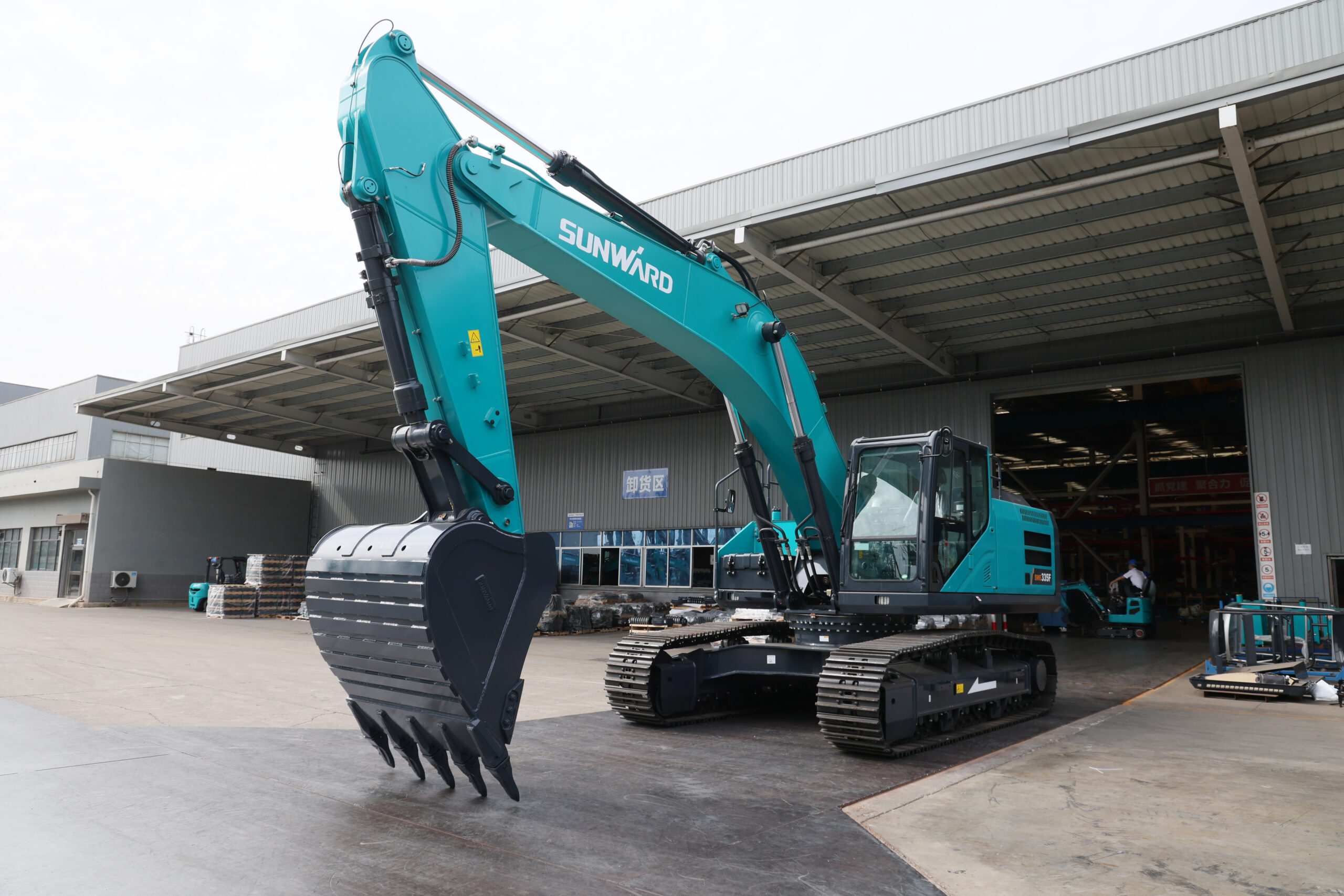

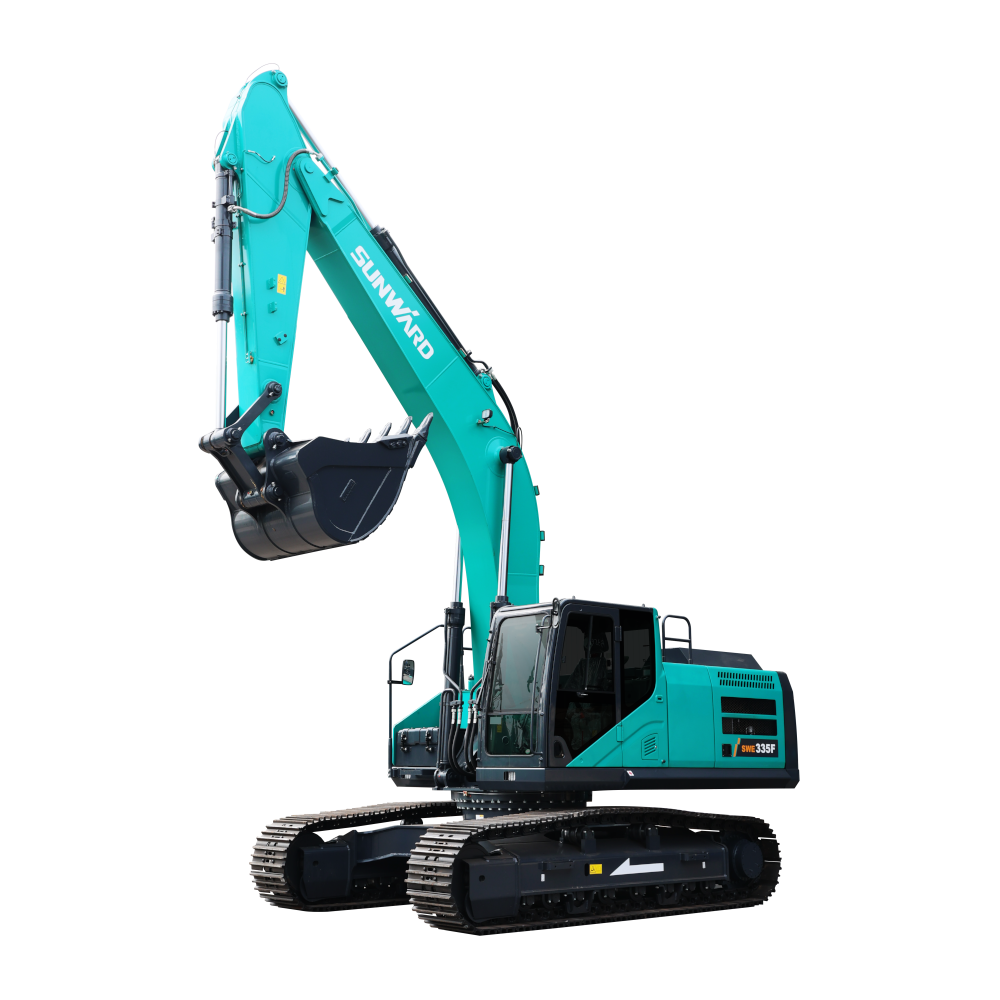

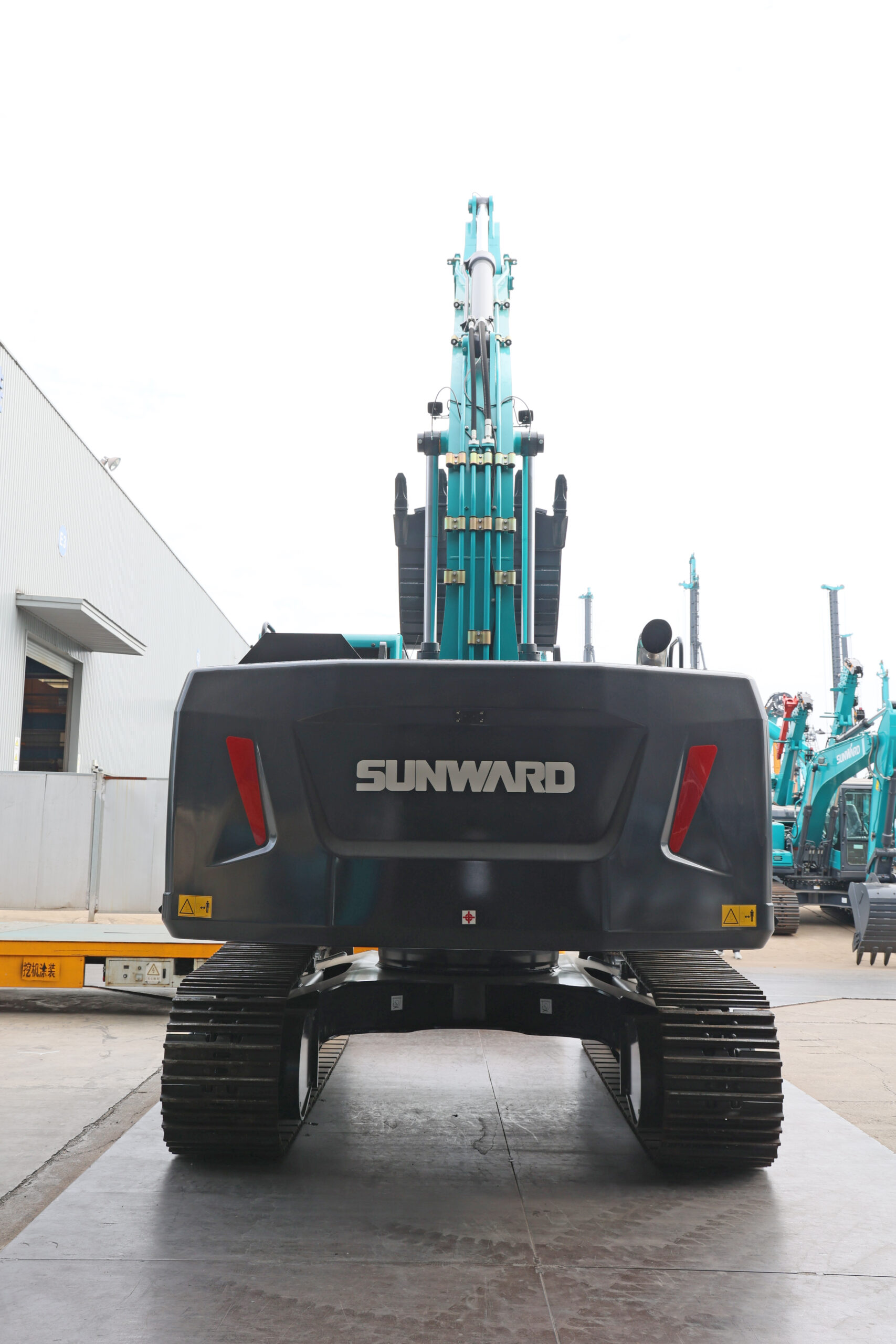

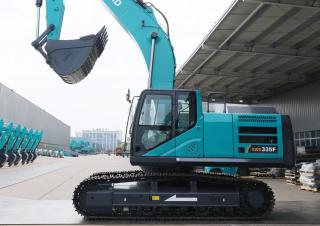

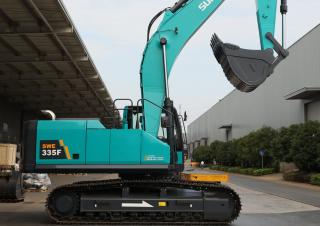

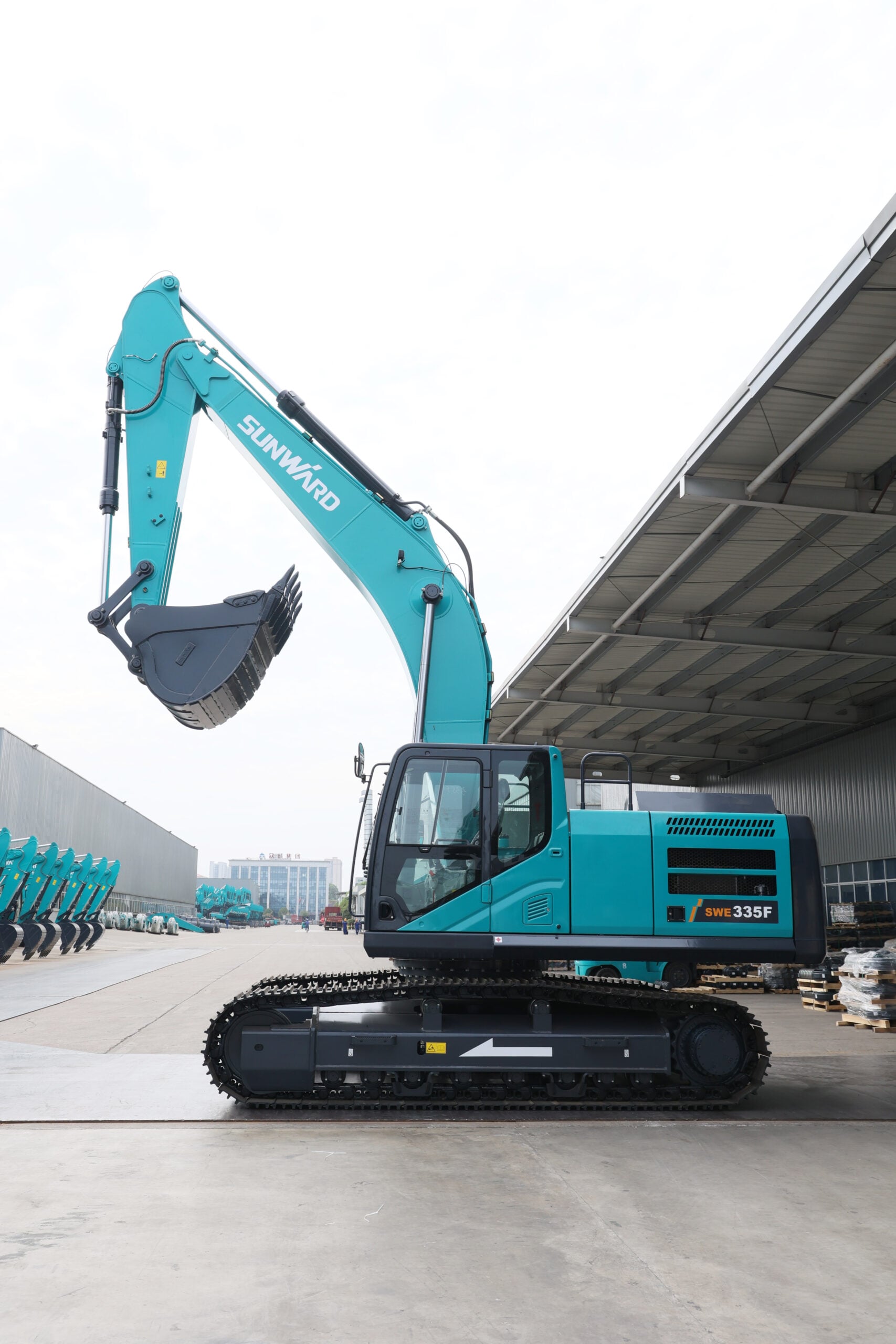

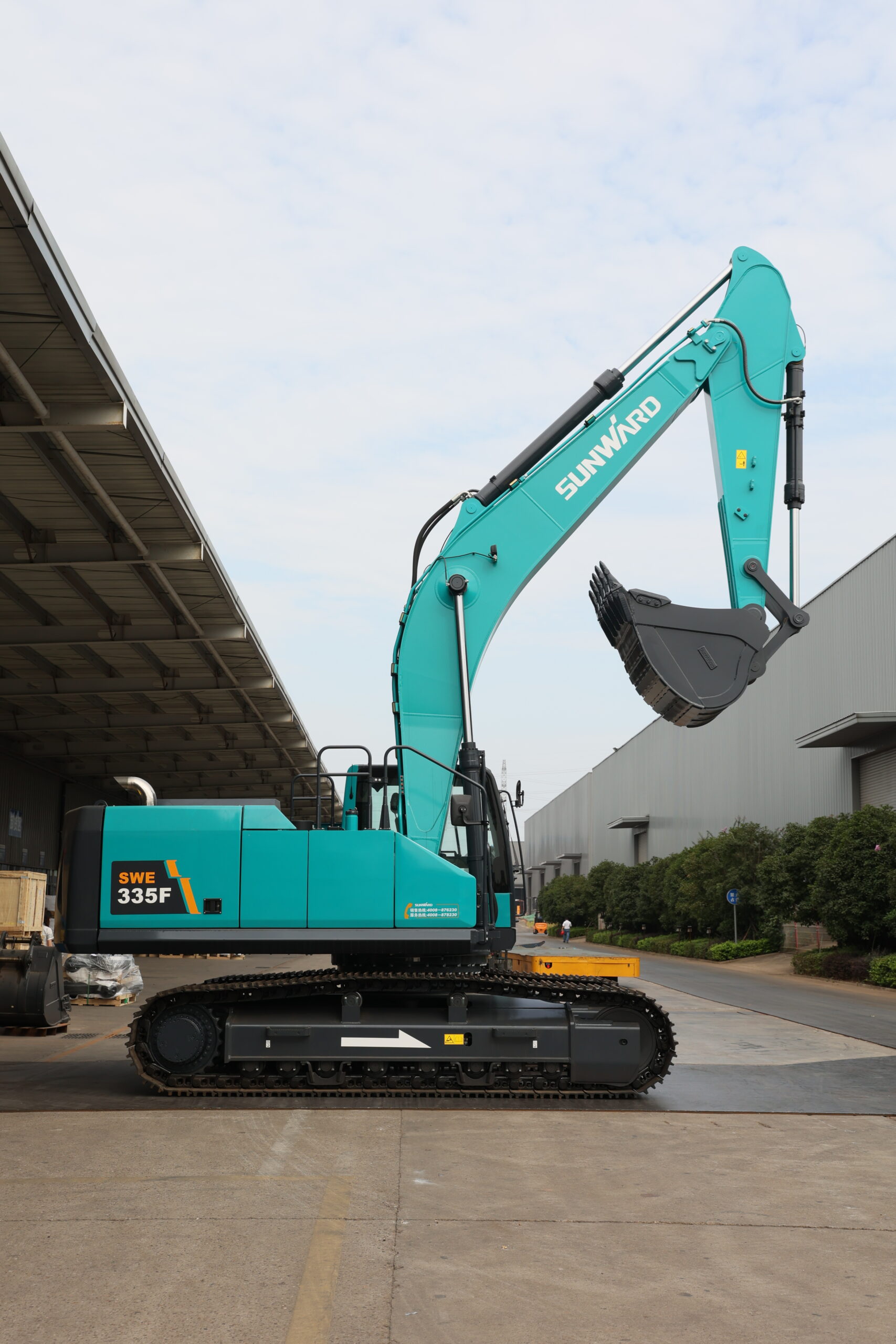

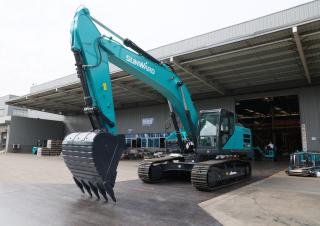

Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F
Crawler Excavators Sunward SWE335F

Technical specs - SWE335F Sunward

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33.6 t
Transport length
10.866 m
Transport width
3.19 m
Transport height
3.6 m
Bucket capacity
1.7 m³
Track width
600 mm
Max. Reach horizontal
10.57 m
Dredging depth
7.01 m
Tear-out force
214 kN
Model series
SWE
Engine manuf.
Cummins
Engine type
B6.7-129-SV
Engine power
209 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm
Max. torque
1280/1500 Nm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
