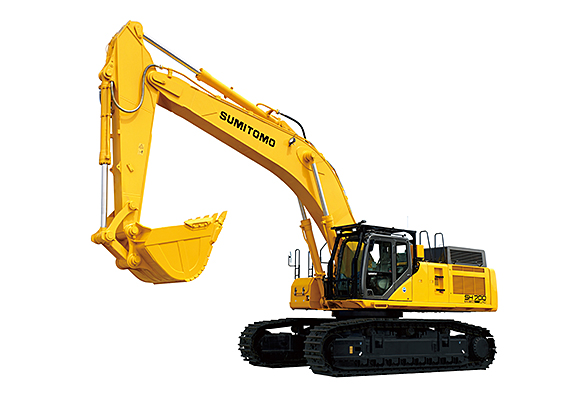

SH700LHD-5 MASS Sumitomo excavator specs & Dimensions (2017 - 2026)

Sumitomo SH700LHD-5 MASS is a Crawler Excavator manufactured since 2017. It has a weight of 68.2 tons and a track width of 650 mm.…

Sumitomo SH700LHD-5 MASS is a Crawler Excavator manufactured since 2017. It has a weight of 68.2 tons and a track width of 650 mm. The transport dimensions are 12.11 meters in length, 3.9 meters in width, and 4.76 meters in height. The excavator features a tear-out force of 365 kN, a dredging depth of 7.18 meters, and a maximum horizontal reach of 11.75 meters. The bucket width is 2.05 meters with a capacity of 4 cubic meters.

Crawler Excavators Sumitomo SH700LHD-5 MASS

Technical specs - SH700LHD-5 MASS Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
68.2 t
Transport length
12.11 m
Transport width
3.9 m
Transport height
4.76 m
Bucket capacity
4 m³
Track width
650 mm
Max. Reach horizontal
11.75 m
Dredging depth
7.18 m
Tear-out force
365 kN
Bucket width
2.05 m
Model series
SH
Engine manuf.
Isuzu
Engine type
AH-6WG1XYSS
Engine power
345 kW
Displacement
15.7 l
Revolutions at max torque
1500 rpm
Max. torque
1980 Nm
No. of cylinders
6
Cylinder bore x stroke
147x154 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH700LHD-5 MASS FAQ

When was the Sumitomo SH700LHD-5 MASS manufactured?

The Sumitomo SH700LHD-5 MASS was first produced in 2017.

How much does the Sumitomo SH700LHD-5 MASS weigh?

The Sumitomo SH700LHD-5 MASS weighs 68.2 tons.

What are the transport dimensions of the Sumitomo SH700LHD-5 MASS crawler excavator?

The Sumitomo SH700LHD-5 MASS has a transport length of 12.11 meters, a transport width of 3.9 meters, and a transport height of 4.76 meters.

What is the track width of the Sumitomo SH700LHD-5 MASS crawler excavator?

The Sumitomo SH700LHD-5 MASS crawler excavator has a track width of 650 mm.

What are the excavation performance specifications of the Sumitomo SH700LHD-5 MASS?

The Sumitomo SH700LHD-5 MASS has a dredging depth of 7.18 meters and a maximum horizontal reach of 11.75 meters.

What is the tear-out force of the Sumitomo SH700LHD-5 MASS?

The Sumitomo SH700LHD-5 MASS has a tear-out force of 365 kN. The source data does not provide any power ratings such as engine power or horsepower.

What are the bucket specifications of the Sumitomo SH700LHD-5 MASS excavator?

The Sumitomo SH700LHD-5 MASS excavator has a bucket capacity of 4 cubic meters and a bucket width of 2.05 meters.

How much is a Sumitomo SH700LHD-5 MASS Crawler excavator (2017u20132025) worth?

The residual value of the Sumitomo SH700LHD-5 MASS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
