JCM936D Strong excavator specs & Dimensions (2017 - 2026)

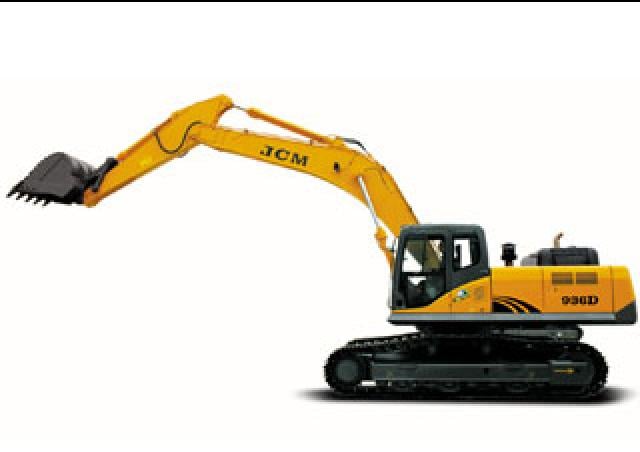

Strong JCM936D is a crawler excavator manufactured since 2017. It has a weight of 35.7 tons and a track width of 600 mm. The trans…

Strong JCM936D is a crawler excavator manufactured since 2017. It has a weight of 35.7 tons and a track width of 600 mm. The transport dimensions are 11.161 meters in length, 3.2 meters in width, and 3.347 meters in height. The machine features a tear-out force of 207.5 kN, a dredging depth of 7.301 meters, and a maximum horizontal reach of 10.886 meters. The bucket width is 1.551 meters with a capacity of 1.6 cubic meters. It is equipped with air conditioning.

Crawler Excavators Strong JCM936D

Technical specs - JCM936D Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.7 t
Transport length
11.161 m
Transport width
3.2 m
Transport height
3.347 m
Bucket capacity
1.6 m³
Track width
600 mm
Max. Reach horizontal
10.886 m
Dredging depth
7.301 m
Tear-out force
207.5 kN
Bucket width
1.551 m
Model series
JCM
Engine manuf.
Cummins
Engine type
6C8.3
Engine power
186 kW
Displacement
8.3 l
No. of cylinders
6
Cylinder bore x stroke
114x134.9 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Strong JCM936D FAQ

When was the Strong JCM936D manufactured?

The Strong JCM936D was first produced in 2017.

How much does the Strong JCM936D weigh?

The Strong JCM936D weighs 35.7 tons.

What are the transport dimensions of the Strong JCM936D crawler excavator?

The Strong JCM936D crawler excavator has a transport length of 11.16 meters, a transport width of 3.2 meters, and a transport height of 3.35 meters.

What is the track width of the Strong JCM936D's undercarriage?

The Strong JCM936D has a track width of 600 mm.

What are the excavation performance specifications of the Strong JCM936D?

The Strong JCM936D has a dredging depth of 7.301 meters and a maximum horizontal reach of 10.886 meters.

What is the tear-out force of the Strong JCM936D?

The Strong JCM936D has a tear-out force of 207.5 kN.

What are the specifications of the bucket on the Strong JCM936D crawler excavator?

The Strong JCM936D crawler excavator has a bucket with a capacity of 1.6 cubic meters and a width of 1.551 meters.

How much is a Strong JCM936D Crawler excavator (2017u20132025) worth?

The residual value of the Strong JCM936D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
