SE750LC Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 72.5t – Transport length: 12.93m – Transport width: 4.31m – Transport height: 4.73m – Bucket capacity: 4.5m³ – Undercarria…

Weight: 72.5t – Transport length: 12.93m – Transport width: 4.31m – Transport height: 4.73m – Bucket capacity: 4.5m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Shantui SE750LC excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE750LC digger specifications. See information, like: Weight: 72.5t – Transport length: 12.93m – Transport width: 4.31m – Transport height: 4.73m – Bucket capacity: 4.5m³ – Undercarriage: LC and more.

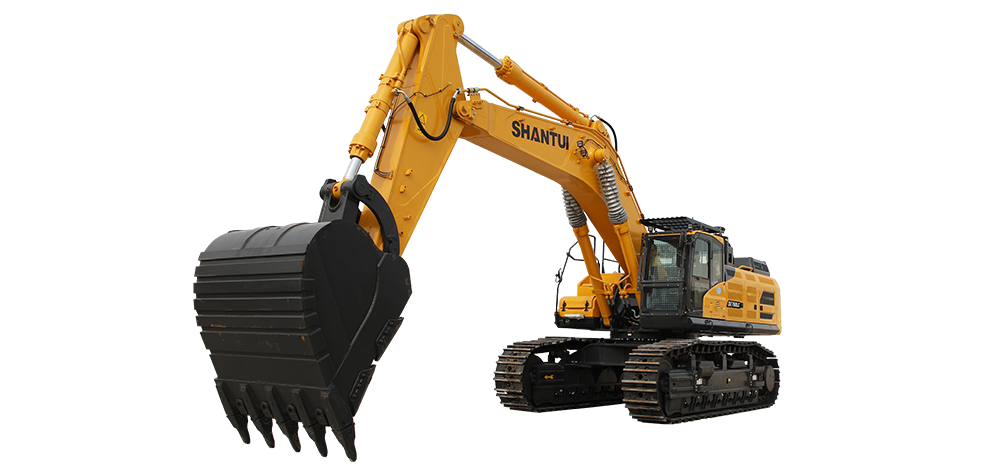

Crawler Excavators Shantui SE750LC

Technical specs - SE750LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
72.5 t
Transport length
12.93 m
Transport width
4.31 m
Transport height
4.73 m
Bucket capacity
4.5 m³
Undercarriage
LC
Track width
650 mm
Max. Reach horizontal
11.92 m
Dredging depth
7.35 m
Tear-out force
420 kN
Engine manuf.
Isuzu
Engine type
6WG1
Engine power
377 kW
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Shantui SE750LC FAQ

When was the Shantui SE750LC manufactured?

The Shantui SE750LC was first produced in 2023.

How much does the Shantui SE750LC weigh?

The Shantui SE750LC weighs 72.5 tons.

What are the transport dimensions of the Shantui SE750LC crawler excavator?

The Shantui SE750LC has a transport length of 12.26 meters, a transport width of 4.31 meters, and a transport height of 4.74 meters.

What is the undercarriage type of the Shantui SE750LC?

The Shantui SE750LC has a long undercarriage.

What are the excavation performance specifications of the Shantui SE750LC?

The Shantui SE750LC has a dredging depth of 6.835 meters and a maximum horizontal reach of 11.07 meters.

What is the tear-out force of the Shantui SE750LC?

The Shantui SE750LC has a tear-out force of 420 kN.

What is the bucket capacity of the Shantui SE750LC crawler excavator?

The Shantui SE750LC crawler excavator has a bucket capacity of 4.5 cubic meters.

How much is a Shantui SE750LC Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE750LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
