SE680LCW Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 66t – Transport length: 12.245m – Transport width: 3.735m – Transport height: 4.75m – Bucket capacity: 4m³ – Max. Reach ho…

Weight: 66t – Transport length: 12.245m – Transport width: 3.735m – Transport height: 4.75m – Bucket capacity: 4m³ – Max. Reach horizontal: 11.52m

Check out detailed specifications, information and technical data for Shantui SE680LCW excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE680LCW digger specifications. See information, like: Weight: 66t – Transport length: 12.245m – Transport width: 3.735m – Transport height: 4.75m – Bucket capacity: 4m³ – Max. Reach horizontal: 11.52m and more.

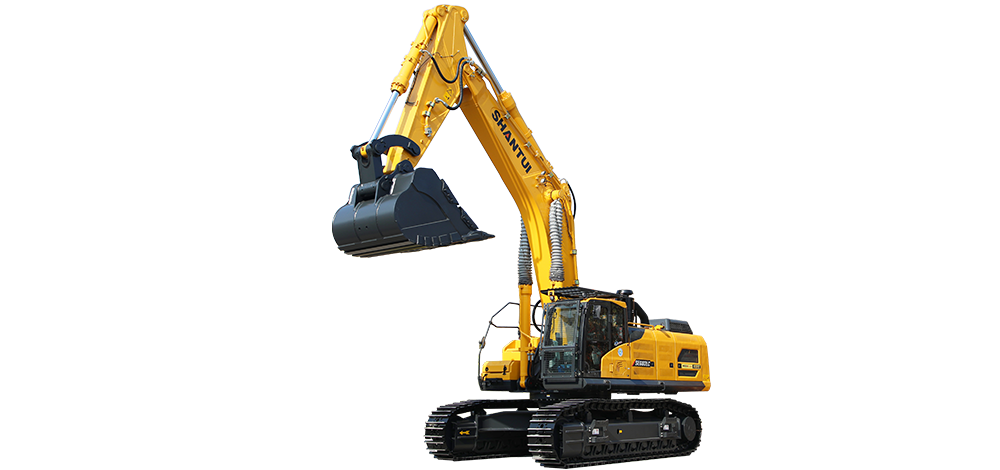

Crawler Excavators Shantui SE680LCW

Technical specs - SE680LCW Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
66 t
Transport length
12.245 m
Transport width
3.735 m
Transport height
4.75 m
Bucket capacity
4 m³
Max. Reach horizontal
11.52 m
Dredging depth
7.04 m
Tear-out force
420 kN
Engine manuf.
N/A
Engine type
N/a
Engine power
566 kW
Emission level
Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Shantui SE680LCW FAQ

When was the Shantui SE680LCW manufactured?

The Shantui SE680LCW was first produced in 2023.

How much does the Shantui SE680LCW weigh?

The Shantui SE680LCW weighs 66 tons.

What are the transport dimensions of the Shantui SE680LCW crawler excavator?

The Shantui SE680LCW has a transport length of 12.25 meters, a transport width of 3.74 meters, and a transport height of 4.75 meters.

What are the excavation performance specifications of the Shantui SE680LCW?

The Shantui SE680LCW has a dredging depth of 7.04 meters and a maximum horizontal reach of 10.855 meters.

What is the tear-out force of the Shantui SE680LCW?

The Shantui SE680LCW has a tear-out force of 420 kN.

What is the bucket capacity of the Shantui SE680LCW crawler excavator?

The Shantui SE680LCW crawler excavator has a bucket capacity of 4 cubic meters.

How much is a Shantui SE680LCW Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE680LCW depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
