SE650LC Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 64.5t – Transport length: 12.245m – Transport width: 3.735m – Transport height: 4.75m – Bucket capacity: 3.6m³ – Undercarr…

Weight: 64.5t – Transport length: 12.245m – Transport width: 3.735m – Transport height: 4.75m – Bucket capacity: 3.6m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Shantui SE650LC excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE650LC digger specifications. See information, like: Weight: 64.5t – Transport length: 12.245m – Transport width: 3.735m – Transport height: 4.75m – Bucket capacity: 3.6m³ – Undercarriage: LC and more.

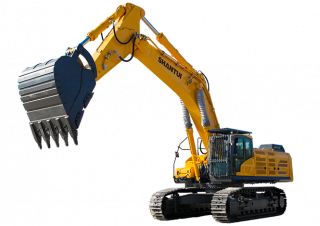

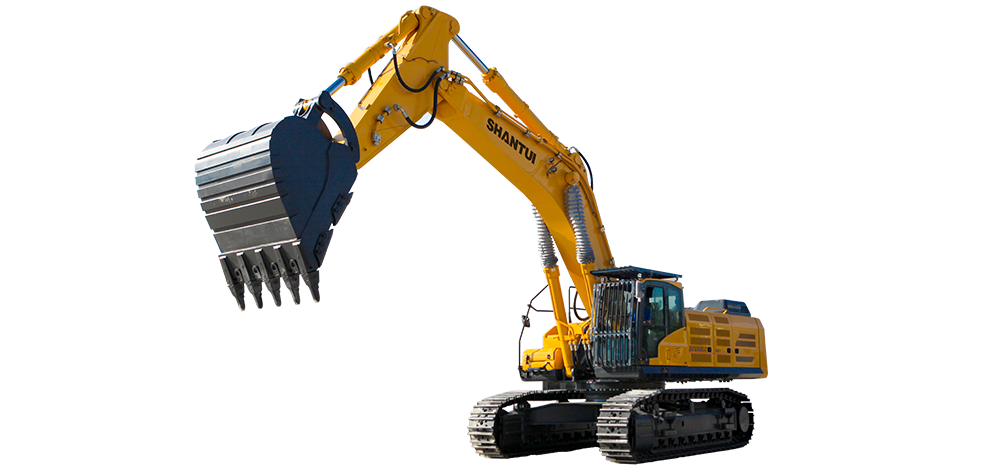

Crawler Excavators Shantui SE650LC

Technical specs - SE650LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
64.5 t
Transport length
12.245 m
Transport width
3.735 m
Transport height
4.75 m
Bucket capacity
3.6 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
11.27 m
Dredging depth
7.04 m
Tear-out force
420 kN
Engine manuf.
Isuzu
Engine type
6WG1
Engine power
377 kW
Displacement
15.68 l
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE650LC FAQ

When was the Shantui SE650LC manufactured?

The Shantui SE650LC was first produced in 2023.

How much does the Shantui SE650LC weigh?

The Shantui SE650LC weighs 64.5 tons.

What are the transport dimensions of the Shantui SE650LC crawler excavator?

The Shantui SE650LC has a transport length of 12.25 meters, a transport width of 3.74 meters, and a transport height of 4.75 meters.

What type of undercarriage does the Shantui SE650LC have?

The Shantui SE650LC has a long undercarriage.

What are the dredging depth and maximum horizontal reach of the Shantui SE650LC?

The Shantui SE650LC has a dredging depth of 7.04 meters and a maximum horizontal reach of 10.855 meters.

What is the tear-out force of the Shantui SE650LC?

The Shantui SE650LC has a tear-out force of 420 kN.

What is the bucket capacity of the Shantui SE650LC crawler excavator?

The bucket capacity of the Shantui SE650LC is 3.6 cubic meters.
