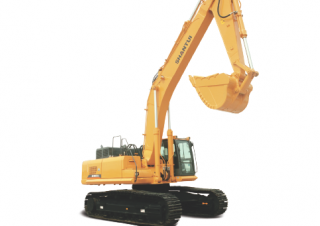

SE450-9 Shantui excavator specs & Dimensions (2018 - 2020)

Shantui SE450-9 is a crawler excavator manufactured from 2018 to 2020, with a weight of 46.8 tons. It has a transport length of 12…

Shantui SE450-9 is a crawler excavator manufactured from 2018 to 2020, with a weight of 46.8 tons. It has a transport length of 12.11 meters, a transport width of 3.36 meters, and a transport height of 3.745 meters. The bucket capacity is 2.1 cubic meters.

Crawler Excavators Shantui SE450-9

Technical specs - SE450-9 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.8 t
Transport length
12.11 m
Transport width
3.36 m
Transport height
3.745 m
Bucket capacity
2.1 m³
Undercarriage
SL
Boom
MB
Engine manuf.
Cummins
Engine type
QSM11
Engine power
250 kW
Dimension lxwxh
1495.2x1253.7x1142.8 mm
Displacement
10.8 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
125x147 mm
Emission level
III A

More technical details, like: bucket capacity min., bucket capacity max., track width, max. reach horizontal, dredging depth, tear-out force, bucket width, model series, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Shantui SE450-9 FAQ

When was the Shantui SE450-9 manufactured?

The Shantui SE450-9 was manufactured from 2018 to 2020.

How much does the Shantui SE450-9 weigh?

The Shantui SE450-9 weighs 46.8 tons.

What are the transport dimensions of the Shantui SE450-9?

The Shantui SE450-9 has a transport length of 12.11 meters, a transport width of 3.36 meters, and a transport height of 3.75 meters.

What type of undercarriage does the Shantui SE450-9 have?

The Shantui SE450-9 has a standard undercarriage.

What type of boom does the Shantui SE450-9 use for excavation?

The Shantui SE450-9 uses a Monobloc boom for excavation.

What is the bucket capacity of the Shantui SE450-9 excavator?

The Shantui SE450-9 excavator has a bucket capacity of 2.1 cubic meters.

How much is a Shantui SE450-9 Crawler excavator (2018u20132020) worth?

The residual value of the Shantui SE450-9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
