SE335LCW Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 34.5t – Transport length: 11.41m – Transport width: 3.26m – Transport height: 3.23m – Bucket capacity: 1.6m³ – Bucket capa…

Weight: 34.5t – Transport length: 11.41m – Transport width: 3.26m – Transport height: 3.23m – Bucket capacity: 1.6m³ – Bucket capacity min.: 1.4m³

Check out detailed specifications, information and technical data for Shantui SE335LCW excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE335LCW digger specifications. See information, like: Weight: 34.5t – Transport length: 11.41m – Transport width: 3.26m – Transport height: 3.23m – Bucket capacity: 1.6m³ – Bucket capacity min.: 1.4m³ and more.

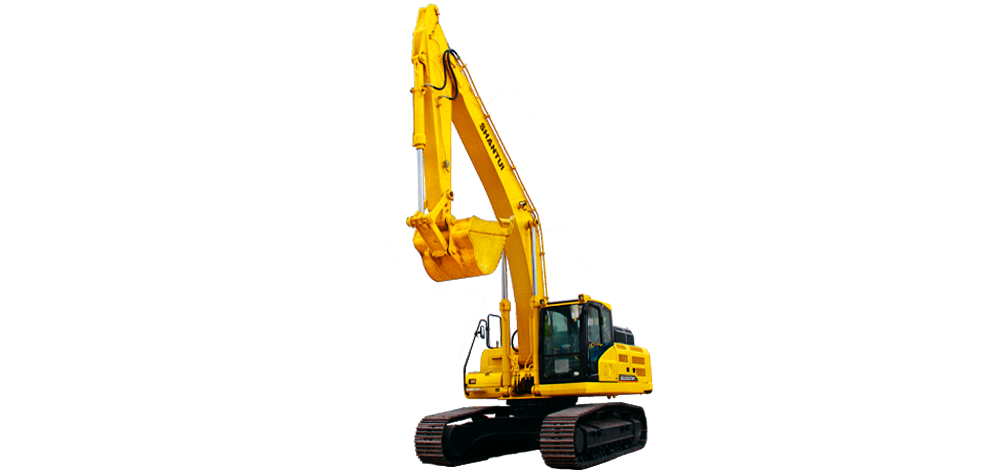

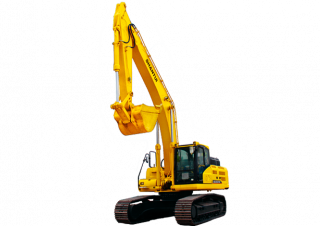

Crawler Excavators Shantui SE335LCW

Technical specs - SE335LCW Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.5 t
Transport length
11.41 m
Transport width
3.26 m
Transport height
3.23 m
Bucket capacity
1.6 m³
Bucket capacity min.
1.4 m³
Bucket capacity max.
1.85 m³
Track width
600 mm
Max. Reach horizontal
10.945 m
Dredging depth
7.425 m
Tear-out force
234 kN
Engine manuf.
Weichai
Engine type
WP10H
Engine power
247 kW
Displacement
9.5 l
No. of cylinders
6
Cylinder bore x stroke
116x150 mm
Emission level
Tier 3 / Stage III

More technical details, like: undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE335LCW FAQ

When was the Shantui SE335LCW manufactured?

The Shantui SE335LCW was first produced in 2023.

How much does the Shantui SE335LCW weigh?

The Shantui SE335LCW weighs 34.5 tons.

What are the transport dimensions of the Shantui SE335LCW crawler excavator?

The Shantui SE335LCW has a transport length of 11.23 meters, a transport width of 3.2 meters, and a transport height of 3.52 meters.

What are the dredging depth and maximum horizontal reach of the Shantui SE335LCW?

The Shantui SE335LCW has a dredging depth of 7.425 meters and a maximum horizontal reach of 10.12 meters.

What are the power ratings of the Shantui SE335LCW?

The available data does not provide any power ratings for the Shantui SE335LCW.

What is the bucket capacity of the Shantui SE335LCW excavator?

The Shantui SE335LCW excavator has a bucket capacity of 1.6 cubic meters.

How much is a Shantui SE335LCW Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE335LCW depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
