SE335LC Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 34.5t – Transport length: 11.26m – Transport width: 3.2m – Transport height: 3.21m – Bucket capacity: 1.6m³ – Undercarriag…

Weight: 34.5t – Transport length: 11.26m – Transport width: 3.2m – Transport height: 3.21m – Bucket capacity: 1.6m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Shantui SE335LC excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE335LC digger specifications. See information, like: Weight: 34.5t – Transport length: 11.26m – Transport width: 3.2m – Transport height: 3.21m – Bucket capacity: 1.6m³ – Undercarriage: LC and more.

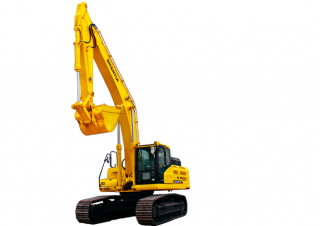

Crawler Excavators Shantui SE335LC

Technical specs - SE335LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.5 t
Transport length
11.26 m
Transport width
3.2 m
Transport height
3.21 m
Bucket capacity
1.6 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
10.645 m
Dredging depth
7.07 m
Tear-out force
234 kN
Engine manuf.
Cummins
Engine type
6LTAA8.9-C325
Engine power
241 kW
Displacement
8.9 l
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE335LC FAQ

When was the Shantui SE335LC manufactured?

The Shantui SE335LC was first produced in 2023.

How much does the Shantui SE335LC weigh?

The Shantui SE335LC weighs 34.5 tons.

What are the transport dimensions of the Shantui SE335LC crawler excavator?

The Shantui SE335LC crawler excavator has a transport length of 11.23 meters, a transport width of 3.2 meters, and a transport height of 3.52 meters.

What type of undercarriage does the Shantui SE335LC have?

The Shantui SE335LC has a long undercarriage.

What is the excavation performance of the Shantui SE335LC?

The Shantui SE335LC has a dredging depth of 7.425 meters and a maximum horizontal reach of 10.12 meters.

What power rating information is available for the Shantui SE335LC?

There is no power rating information available for the Shantui SE335LC in the provided data.

What is the bucket capacity of the Shantui SE335LC crawler excavator?

The Shantui SE335LC crawler excavator has a bucket capacity of 1.6 cubic meters.

How much is a Shantui SE335LC Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE335LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
