825 R Sennebogen excavator specs & Dimensions (2010 - 2019)

Sennebogen 825 R is a Crawler Excavator manufactured from 2010 to 2019. It has a weight of 33 tons and a track width of 600 mm. Th…

Sennebogen 825 R is a Crawler Excavator manufactured from 2010 to 2019. It has a weight of 33 tons and a track width of 600 mm. The transport dimensions are 10.38 meters in length, 3 meters in width, and 3.55 meters in height. The maximum horizontal reach is 13 meters. Special equipment includes air conditioning, material handling capabilities, and track adjustment.

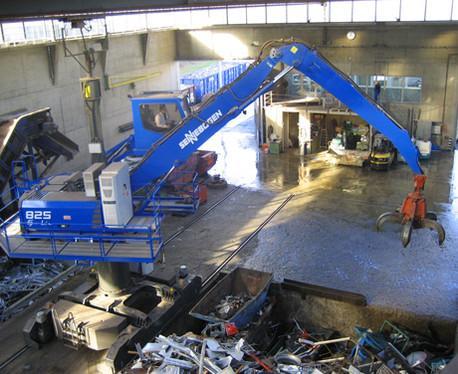

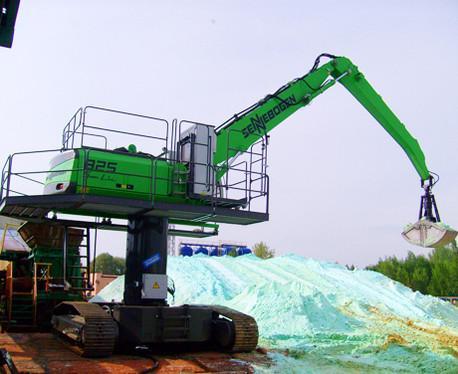

Crawler Excavators Sennebogen 825 R
Crawler Excavators Sennebogen 825 R
Crawler Excavators Sennebogen 825 R
Crawler Excavators Sennebogen 825 R

Visit Sennebogen live at

Technical specs - 825 R Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
33 t
Transport length
10.38 m
Transport width
3 m
Transport height
3.55 m
Track width
600 mm
Boom
UA
Max. Reach horizontal
13 m
Model series
R
Engine manuf.
Cummins
Engine type
QSB6.7-C173
Engine power
129 kW
Displacement
13 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, dredging depth, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sennebogen 825 R FAQ

When was the Sennebogen 825 R manufactured?

The Sennebogen 825 R was manufactured from 2010 to 2019.

How much does the Sennebogen 825 R weigh?

The Sennebogen 825 R weighs 33 tons.

What are the transport dimensions of the Sennebogen 825 R crawler excavator?

The Sennebogen 825 R has a transport length of 10.38 meters, a transport width of 3 meters, and a transport height of 3.55 meters.

What is the track width of the Sennebogen 825 R's undercarriage?

The Sennebogen 825 R has a track width of 600 mm.

What is the maximum horizontal reach and boom type of the Sennebogen 825 R?

The Sennebogen 825 R has a maximum horizontal reach of 13 meters and is equipped with a material handling boom.

How much is a Sennebogen 825 R Crawler excavator (2010u20132019) worth?

The residual value of the Sennebogen 825 R depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
