SY135C8B Sany excavator specs & Dimensions (2008 - 2026)

Sany SY135C8B is a crawler excavator manufactured since 2008. It has a weight of 13 tons and a track width of 500 mm. The transpor…

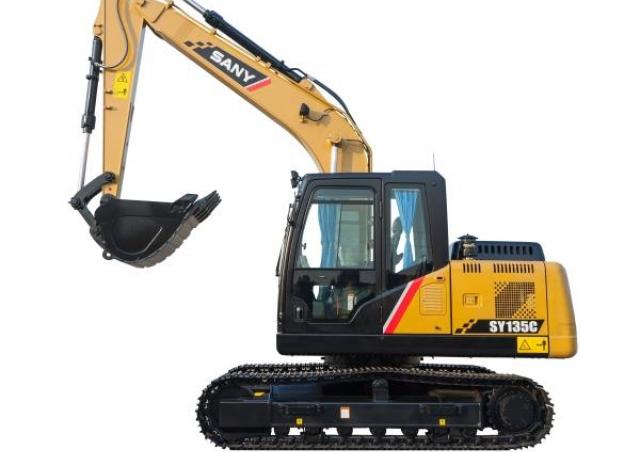

Sany SY135C8B is a crawler excavator manufactured since 2008. It has a weight of 13 tons and a track width of 500 mm. The transport dimensions are 7 meters in length, 2 meters in width, and 2.815 meters in height. The dredging depth is 5376 mm. Special equipment includes air conditioning, cabin adjustment, and a diesel particulate filter.

Crawler Excavators Sany SY135C8B

Visit Sany live at

Technical specs - SY135C8B Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13 t
Transport length
7 m
Transport width
2 m
Transport height
2.82 m
Bucket capacity
0.53 m³
Undercarriage
SL
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.32 m
Dredging depth
5.376 m
Tear-out force
92.7 kN
Engine manuf.
Isuzu
Engine type
4BG1TRP
Engine power
69.6 kW
Displacement
4329 l
Revolutions at max torque
1600 rpm
Max. torque
337.6 Nm
No. of cylinders
4
Cylinder bore x stroke
105 x 115 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY135C8B FAQ

When was the Sany SY135C8B manufactured?

The Sany SY135C8B was first produced in 2008.

How much does the Sany SY135C8B weigh?

The Sany SY135C8B weighs 13 tons.

What are the transport dimensions of the Sany SY135C8B crawler excavator?

The Sany SY135C8B has a transport length of 7 meters, a transport width of 2 meters, and a transport height of 2.82 meters.

What are the undercarriage specifications of the Sany SY135C8B?

The Sany SY135C8B has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Sany SY135C8B?

The Sany SY135C8B has a dredging depth of 5.376 meters, a maximum horizontal reach of 8.32 meters, and features a monobloc boom.

What is the power rating of the Sany SY135C8B?

The power rating of the Sany SY135C8B is not provided in the available data.

What is the bucket capacity of the Sany SY135C8B crawler excavator?

The Sany SY135C8B crawler excavator has a bucket capacity of 0.53 cubic meters.

How much is a Sany SY135C8B Crawler excavator (2008u20132025) worth?

The residual value of the Sany SY135C8B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
