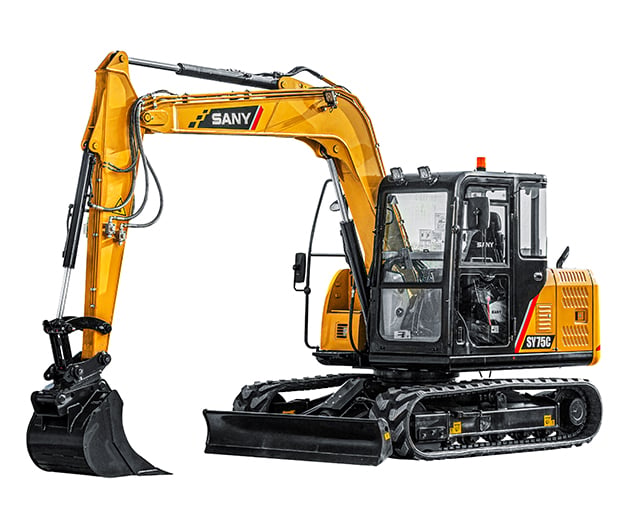

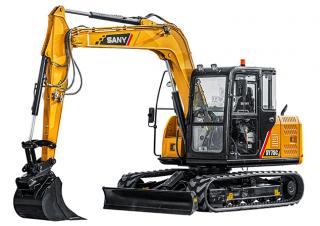

SY75 Sany excavator specs & Dimensions (2018 - 2026)

Sany SY75 is a Crawler Excavator manufactured since 2018. It has a weight of 7.28 tons and a track width of 450 mm. The transport …

Sany SY75 is a Crawler Excavator manufactured since 2018. It has a weight of 7.28 tons and a track width of 450 mm. The transport dimensions are 6.115 meters in length, 2.22 meters in width, and 2.72 meters in height. The excavator features a tear-out force of 35 kN, a dredging depth of 4.45 meters, and a maximum horizontal reach of 6.505 meters. The bucket capacity is 0.28 cubic meters.

Crawler Excavators Sany SY75

Visit Sany live at

Technical specs - SY75 Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.28 t
Transport length
6.115 m
Transport width
2.22 m
Transport height
2.72 m
Bucket capacity
0.28 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.505 m
Dredging depth
4.45 m
Tear-out force
35 kN
Engine manuf.
Isuzu
Engine type
4LE2X
Engine power
43 kW
Displacement
2.179 l
Revolutions at max torque
2000 rpm
Max. torque
215/1800 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sany SY75 FAQ

When was the Sany SY75 manufactured?

The Sany SY75 was first produced in 2018.

How much does the Sany SY75 weigh?

The Sany SY75 weighs 7.28 tons.

What are the transport dimensions of the Sany SY75 crawler excavator?

The Sany SY75 crawler excavator has a transport length of 6.12 meters, a transport width of 2.22 meters, and a transport height of 2.72 meters.

What is the track width of the Sany SY75 crawler excavator?

The Sany SY75 crawler excavator has a track width of 450 mm.

What are the excavation performance specifications of the Sany SY75 crawler excavator?

The Sany SY75 crawler excavator has a dredging depth of 4.45 meters, a maximum horizontal reach of 6.505 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sany SY75?

The Sany SY75 has a tear-out force of 35 kN.

What is the bucket capacity of the Sany SY75 excavator?

The Sany SY75 excavator has a bucket capacity of 0.28 cubic meters.

How much is a Sany SY75 Crawler excavator (2018u20132025) worth?

The residual value of the Sany SY75 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
