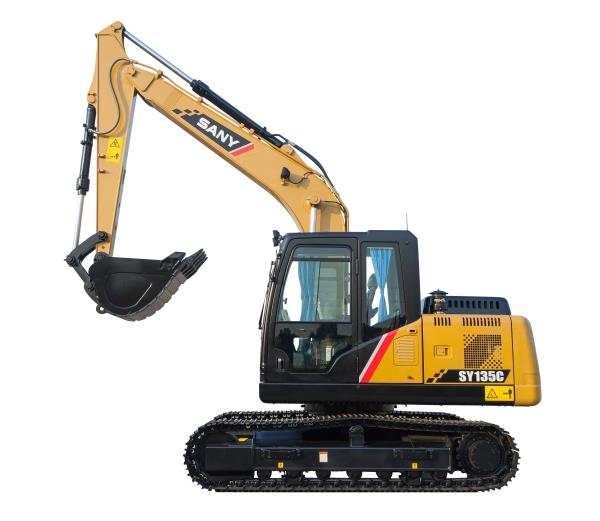

SY135C Sany excavator specs & Dimensions (2018 - 2021)

Sany SY135C is a Crawler Excavator manufactured from 2018 to 2021. It has a weight of 15.1 tons and a track width of 600 mm. The t…

Sany SY135C is a Crawler Excavator manufactured from 2018 to 2021. It has a weight of 15.1 tons and a track width of 600 mm. The transport dimensions are 7.7 meters in length, 2.59 meters in width, and 2.82 meters in height. The excavator features a tear-out force of 67 kN, a dredging depth of 5.5 meters, a maximum horizontal reach of 8.29 meters, and a bucket capacity of 0.6 cubic meters.

Crawler Excavators Sany SY135C

Visit Sany live at

Technical specs - SY135C Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.1 t
Transport length
7.7 m
Transport width
2.59 m
Transport height
2.82 m
Bucket capacity
0.6 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.29 m
Dredging depth
5.5 m
Tear-out force
67 kN
Engine manuf.
Isuzu
Engine type
4JJ1X
Engine power
78.5 kW
Displacement
2.999 l
Revolutions at max torque
2000 rpm
Max. torque
375/1600 Nm
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY135C FAQ

When was the Sany SY135C manufactured?

The Sany SY135C was manufactured from 2018 to 2021.

How much does the Sany SY135C crawler excavator weigh?

The Sany SY135C crawler excavator weighs 15.1 tons.

What are the transport dimensions of the Sany SY135C crawler excavator?

The Sany SY135C has a transport length of 7.7 meters, a transport width of 2.59 meters, and a transport height of 2.82 meters.

What is the track width of the Sany SY135C's undercarriage?

The Sany SY135C has a track width of 600 mm.

What are the excavation performance specifications of the Sany SY135C crawler excavator?

The Sany SY135C crawler excavator has a dredging depth of 5.5 meters, a maximum horizontal reach of 8.29 meters, and is equipped with a monobloc boom.

What is the tear-out force, the available power-related metric, of the Sany SY135C crawler excavator?

The Sany SY135C crawler excavator has a tear-out force of 67 kN.

What is the bucket capacity of the Sany SY135C crawler excavator?

The bucket capacity of the Sany SY135C crawler excavator is 0.6 cubic meters.

How much is a Sany SY135C Crawler excavator (2018u20132021) worth?

The residual value of the Sany SY135C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
