REX360 RHINO excavator specs & Dimensions (2017 - 2026)

RHINO REX360 is a Crawler Excavator manufactured since 2017, with a weight of 34.5 tons. It features a track width of 600 mm, a tr…

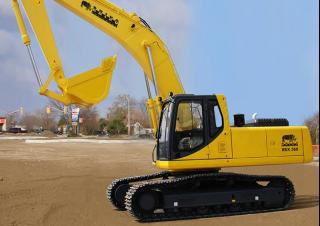

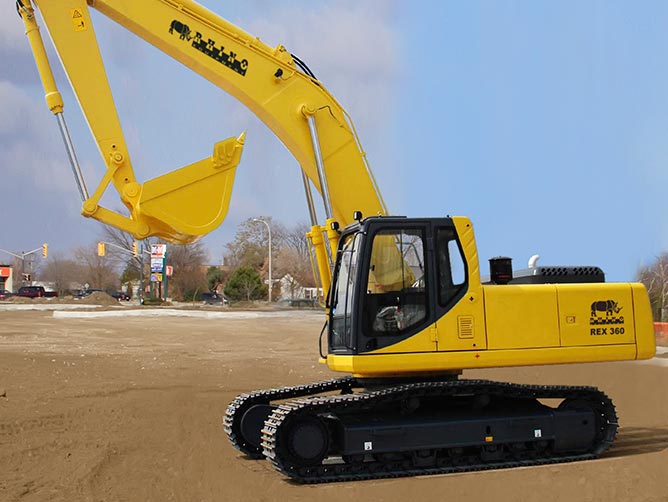

RHINO REX360 is a Crawler Excavator manufactured since 2017, with a weight of 34.5 tons. It features a track width of 600 mm, a transport length of 11.08 meters, a transport width of 3.19 meters, and a transport height of 3.28 meters. The machine has a tear-out force of 208 kN, a dredging depth of 7.37 meters, and a maximum horizontal reach of 10.91 meters. It is equipped with air conditioning.

Crawler Excavators RHINO REX360

Technical specs - REX360 RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.5 t
Transport length
11.08 m
Transport width
3.19 m
Transport height
3.28 m
Track width
600 mm
Max. Reach horizontal
10.91 m
Dredging depth
7.37 m
Tear-out force
208 kN
Model series
REX

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

RHINO REX360 FAQ

When was the RHINO REX360 manufactured?

The RHINO REX360 was first produced in 2017.

How much does the RHINO REX360 weigh?

The RHINO REX360 weighs 34.5 tons.

What are the transport dimensions of the RHINO REX360 crawler excavator?

The RHINO REX360 has a transport length of 11.08 meters, a transport width of 3.19 meters, and a transport height of 3.28 meters.

What is the track width of the RHINO REX360 crawler excavator?

The RHINO REX360 crawler excavator has a track width of 600 mm.

What is the excavation performance of the RHINO REX360?

The RHINO REX360 has a dredging depth of 7.37 meters and a maximum horizontal reach of 10.91 meters.

What is the tear-out force of the RHINO REX360?

The RHINO REX360 has a tear-out force of 208 kN.

How much is a RHINO REX360 Crawler excavator (2017u20132025) worth?

The residual value of the RHINO REX360 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
