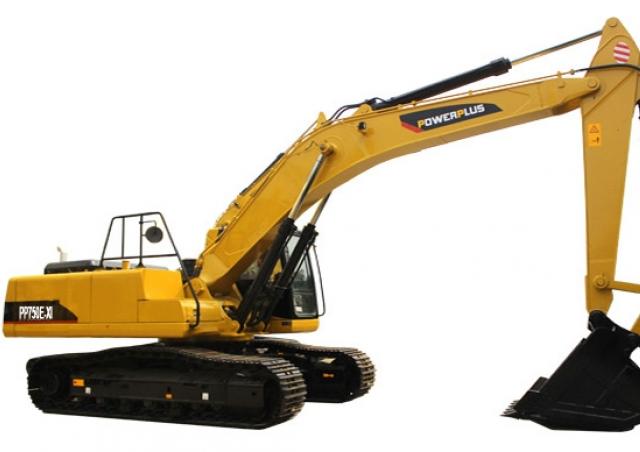

PP800E-XI PowerPlus excavator specs & Dimensions (2017 - 2026)

PowerPlus PP800E-XI is a crawler excavator manufactured since 2017. It has a weight of 71.2 tons and a track width of 650 mm. The …

PowerPlus PP800E-XI is a crawler excavator manufactured since 2017. It has a weight of 71.2 tons and a track width of 650 mm. The transport dimensions are 12.17 meters in length, 4.256 meters in width, and 5.05 meters in height. The machine features a tear-out force of 365 kN, a dredging depth of 7.19 meters, and a maximum horizontal reach of 11.75 meters. The bucket capacity is 4 cubic meters, and it comes equipped with air conditioning.

Crawler Excavators PowerPlus PP800E-XI

Technical specs - PP800E-XI PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
71.2 t
Transport length
12.17 m
Transport width
4.26 m
Transport height
5.05 m
Bucket capacity
4 m³
Track width
650 mm
Max. Reach horizontal
11.75 m
Dredging depth
7.19 m
Tear-out force
365 kN
Model series
PP
Engine manuf.
Cummins
Engine type
QSM15
Engine power
359 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

PowerPlus PP800E-XI FAQ

When was the PowerPlus PP800E-XI manufactured?

The PowerPlus PP800E-XI was first produced in 2017.

How much does the PowerPlus PP800E-XI weigh?

The PowerPlus PP800E-XI weighs 71.2 tons.

What are the transport dimensions of the PowerPlus PP800E-XI?

The PowerPlus PP800E-XI has a transport length of 12.17 meters, a transport width of 4.26 meters, and a transport height of 5.05 meters.

What is the track width of the PowerPlus PP800E-XI's undercarriage?

The PowerPlus PP800E-XI has a track width of 650 mm.

What are the dredging depth and maximum horizontal reach of the PowerPlus PP800E-XI?

The PowerPlus PP800E-XI has a dredging depth of 7.19 meters and a maximum horizontal reach of 11.75 meters.

What is the tear-out force of the PowerPlus PP800E-XI?

The PowerPlus PP800E-XI has a tear-out force of 365 kN.

What is the bucket capacity of the PowerPlus PP800E-XI excavator?

The bucket capacity of the PowerPlus PP800E-XI is 4 cubic meters.
