PP500E-XI PowerPlus excavator specs & Dimensions (2017 - 2026)

PowerPlus PP500E-XI is a crawler excavator manufactured since 2017. It has a weight of 46.8 tons and a track width of 600 mm. The …

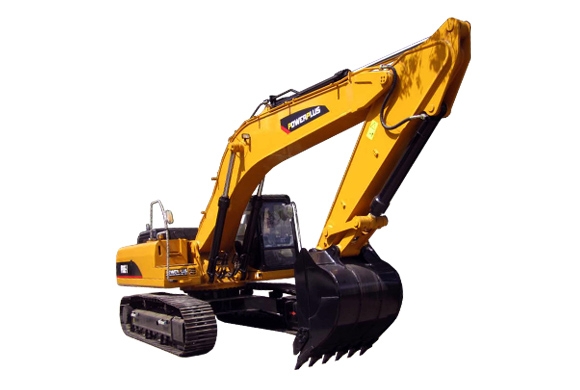

PowerPlus PP500E-XI is a crawler excavator manufactured since 2017. It has a weight of 46.8 tons and a track width of 600 mm. The transport dimensions are 12.18 meters in length, 3.34 meters in width, and 3.28 meters in height. The machine features a tear-out force of 276 kN, a dredging depth of 7.81 meters, and a maximum horizontal reach of 12.025 meters. The bucket capacity is 2.3 cubic meters, and it comes equipped with air conditioning.

Crawler Excavators PowerPlus PP500E-XI

Technical specs - PP500E-XI PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.8 t
Transport length
12.18 m
Transport width
3.34 m
Transport height
3.28 m
Bucket capacity
2.3 m³
Track width
600 mm
Max. Reach horizontal
12.025 m
Dredging depth
7.81 m
Tear-out force
276 kN
Model series
PP
Engine manuf.
Cummins
Engine type
QSM11
Engine power
257 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

PowerPlus PP500E-XI FAQ

When was the PowerPlus PP500E-XI manufactured?

The PowerPlus PP500E-XI was first produced in 2017.

How much does the PowerPlus PP500E-XI weigh?

The PowerPlus PP500E-XI weighs 46.8 tons.

What are the transport dimensions of the PowerPlus PP500E-XI crawler excavator?

The PowerPlus PP500E-XI has a transport length of 12.18 meters, a transport width of 3.34 meters, and a transport height of 3.28 meters.

What is the track width of the PowerPlus PP500E-XI crawler excavator?

The PowerPlus PP500E-XI crawler excavator has a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the PowerPlus PP500E-XI?

The PowerPlus PP500E-XI has a dredging depth of 7.81 meters and a maximum horizontal reach of 12.025 meters.

What is the tear-out force of the PowerPlus PP500E-XI?

The PowerPlus PP500E-XI has a tear-out force of 276 kN.

What is the bucket capacity of the PowerPlus PP500E-XI crawler excavator?

The bucket capacity of the PowerPlus PP500E-XI is 2.3 cubic meters.
