RH Plus O&K excavator specs & Dimensions (2000 - 2005)

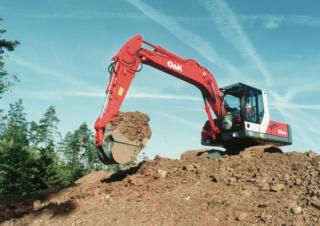

O&K RH Plus is a crawler excavator manufactured from 2000 to 2005, with a weight of 16.2 tons. It features a track width of 600 mm…

O&K RH Plus is a crawler excavator manufactured from 2000 to 2005, with a weight of 16.2 tons. It features a track width of 600 mm, a transport length of 8 meters, a transport width of 2.596 meters, and a transport height of 2.97 meters. The machine has a tear-out force of 63 kN.

Crawler Excavators O&K RH Plus

Technical specs - RH Plus O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.2 t
Transport length
8 m
Transport width
2.596 m
Transport height
2.97 m
Bucket capacity
0.5 m³
Undercarriage
SL
Track width
600 mm
Max. Reach horizontal
8.6 m
Dredging depth
6.4 m
Tear-out force
63 kN
Bucket width
0.8 m
Model series
RH
Engine manuf.
Cummins
Engine type
4BT3.9C
Engine power
71 kW
Displacement
3.9 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K RH Plus FAQ

When was the O&K RH Plus manufactured?

The O&K RH Plus was manufactured from 2000 to 2005.

How much does the O&K RH Plus weigh?

The O&K RH Plus weighs 16.2 tons.

What are the transport dimensions of the O&K RH Plus crawler excavator?

The O&K RH Plus has a transport length of 8 meters, a transport width of 2.6 meters, and a transport height of 2.97 meters.

What are the undercarriage specifications of the O&K RH Plus crawler excavator?

The O&K RH Plus crawler excavator has a standard undercarriage with a track width of 600 mm.

What is the excavation performance of the O&K RH Plus crawler excavator?

The O&K RH Plus crawler excavator has a dredging depth of 6.4 meters and a maximum horizontal reach of 8.6 meters.

What is the power rating of the O&K RH Plus crawler excavator?

The source data does not provide power rating information for the O&K RH Plus crawler excavator.

What are the bucket specifications of the O&K RH Plus crawler excavator?

The O&K RH Plus crawler excavator has a bucket capacity of 0.5 cubic meters and a bucket width of 0.8 meters.

How much is a O&K RH Plus Crawler excavator (2000u20132005) worth?

The residual value of the O&K RH Plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
