RH 23.5 O&K excavator specs & Dimensions (2000 - 2005)

Model rating
10,00 / 10

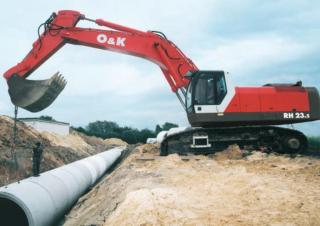

O&K RH 23.5 is a crawler excavator manufactured from 2000 to 2005. It has a weight of 50 tons and a track width of 600 mm. The tra…

O&K RH 23.5 is a crawler excavator manufactured from 2000 to 2005. It has a weight of 50 tons and a track width of 600 mm. The transport dimensions are 5.435 meters in length, 3.5 meters in width, and 3.45 meters in height. The excavator features a tear-out force of 251 kN and a bucket capacity of 2 cubic meters.

Crawler Excavators O&K RH 23.5

Technical specs - RH 23.5 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
50 t
Transport length
5.44 m
Transport width
3.5 m
Transport height
3.45 m
Bucket capacity
2 m³
Undercarriage
SL
Track width
600 mm
Tear-out force
251 kN
Bucket width
1.62 m
Model series
RH
Engine manuf.
Cummins
Engine type
M11
Engine power
235 kW
Displacement
10.8 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, max. reach horizontal, dredging depth, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K RH 23.5 FAQ

When was the O&K RH 23.5 manufactured?

The O&K RH 23.5 was manufactured from 2000 to 2005.

How much does the O&K RH 23.5 weigh?

The O&K RH 23.5 weighs 50 tons.

What are the transport dimensions of the O&K RH 23.5 crawler excavator?

The O&K RH 23.5 crawler excavator has a transport length of 5.44 meters, a transport width of 3.5 meters, and a transport height of 3.45 meters.

What are the undercarriage specifications of the O&K RH 23.5 crawler excavator?

The O&K RH 23.5 crawler excavator has a standard undercarriage with a track width of 600 mm.

What is the power rating of the O&K RH 23.5 crawler excavator?

The power rating of the O&K RH 23.5 crawler excavator is not provided in the available data.

What are the bucket specifications of the O&K RH 23.5 crawler excavator?

The O&K RH 23.5 crawler excavator has a bucket capacity of 2 cubic meters and a bucket width of 1.62 meters.

How much is a O&K RH 23.5 Crawler excavator (2000u20132005) worth?

The residual value of the O&K RH 23.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
