RH 16.5 O&K excavator specs & Dimensions (2001 - 2005)

O&K RH 16.5 is a crawler excavator manufactured from 2001 to 2005, with a weight of 43 tons. It features a track width of 600 mm, …

O&K RH 16.5 is a crawler excavator manufactured from 2001 to 2005, with a weight of 43 tons. It features a track width of 600 mm, a transport length of 11.4 meters, a transport width of 3 meters, and a transport height of 3.22 meters. The machine has a tear-out force of 194 kN.

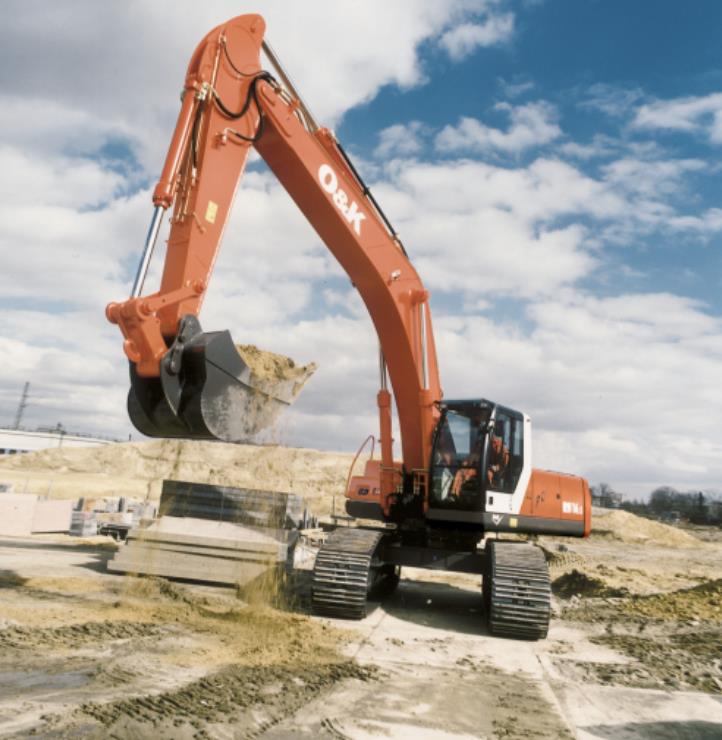

Crawler Excavators O&K RH 16.5

Technical specs - RH 16.5 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
43 t
Transport length
11.4 m
Transport width
3 m
Transport height
3.22 m
Bucket capacity
1.6 m³
Undercarriage
SL
Track width
600 mm
Max. Reach horizontal
11.1 m
Dredging depth
6.7 m
Tear-out force
194 kN
Bucket width
1.6 m
Model series
RH
Engine manuf.
Cummins
Engine type
6CTA8.3
Engine power
195 kW
Displacement
8.3 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K RH 16.5 FAQ

When was the O&K RH 16.5 manufactured?

The O&K RH 16.5 was manufactured from 2001 to 2005.

How much does the O&K RH 16.5 weigh?

The O&K RH 16.5 weighs 43 tons.

What are the transport dimensions of the O&K RH 16.5 crawler excavator?

The O&K RH 16.5 has a transport length of 11.4 meters, a transport width of 3 meters, and a transport height of 3.22 meters.

What are the undercarriage specifications of the O&K RH 16.5 crawler excavator?

The O&K RH 16.5 crawler excavator has a standard undercarriage with a track width of 600 mm.

What are the dredging depth and maximum horizontal reach of the O&K RH 16.5 crawler excavator?

The O&K RH 16.5 crawler excavator has a dredging depth of 6.7 meters and a maximum horizontal reach of 11.1 meters.

What is the tear-out force of the O&K RH 16.5, given that no power rating data is available?

The O&K RH 16.5 has a tear-out force of 194 kN. No power rating information is provided in the available data.

What are the specifications of the bucket on the O&K RH 16.5 crawler excavator?

The bucket of the O&K RH 16.5 has a capacity of 1.6 cubic meters and a width of 1.6 meters.

How much is a O&K RH 16.5 Crawler excavator (2001u20132005) worth?

The residual value of the O&K RH 16.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
