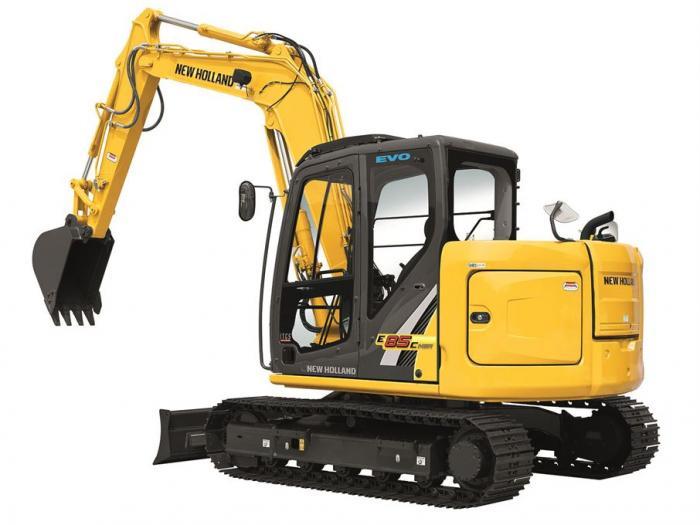

E85C MSR LC New Holland excavator specs & Dimensions (2012 - 2015)

New Holland E85C MSR LC is a crawler excavator manufactured from 2012 to 2015, with a weight of 8.5 tons and a track width of 600 …

New Holland E85C MSR LC is a crawler excavator manufactured from 2012 to 2015, with a weight of 8.5 tons and a track width of 600 mm. It has a tear-out force of 35 kN, a dredging depth of 3.81 meters, and a maximum horizontal reach of 7.6 meters. The bucket width is 0.85 meters, and the bucket capacity is 0.36 cubic meters. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators New Holland E85C MSR LC
Crawler Excavators New Holland E85C MSR LC
Crawler Excavators New Holland E85C MSR LC
Crawler Excavators New Holland E85C MSR LC
Crawler Excavators New Holland E85C MSR LC
Crawler Excavators New Holland E85C MSR LC

Technical specs - E85C MSR LC New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Bucket capacity
0.36 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
7.6 m
Dredging depth
3.81 m
Tear-out force
35 kN
Bucket width
0.85 m
Model series
E
Engine manuf.
Isuzu
Engine type
AU-4LE2X
Engine power
42 kW
Displacement
2.2 l
Revolutions at max torque
2000 rpm

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E85C MSR LC FAQ

When was the New Holland E85C MSR LC manufactured?

The New Holland E85C MSR LC was manufactured from 2012 to 2015.

How much does the New Holland E85C MSR LC weigh?

The New Holland E85C MSR LC weighs 8.5 tons.

What are the undercarriage specifications of the New Holland E85C MSR LC?

The New Holland E85C MSR LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E85C MSR LC?

The New Holland E85C MSR LC has a dredging depth of 3.81 meters, a maximum horizontal reach of 7.6 meters, and is equipped with a monobloc boom.

What are the power ratings of the New Holland E85C MSR LC?

Power rating data for the New Holland E85C MSR LC is not available in the provided information.

What are the bucket specifications of the New Holland E85C MSR LC excavator?

The New Holland E85C MSR LC excavator has a bucket capacity of 0.36 cubic meters and a bucket width of 0.85 meters.

How much is a New Holland E85C MSR LC Crawler excavator (2012u20132015) worth?

The residual value of the New Holland E85C MSR LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
