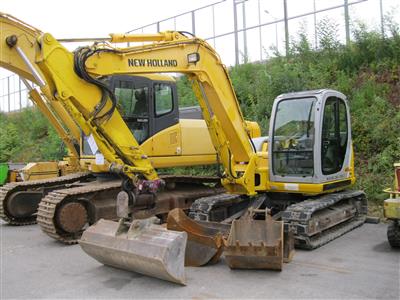

E80 New Holland excavator specs & Dimensions (2005 - 2026)

New Holland E80 is a crawler excavator manufactured since 2005, with a weight of 7 tons. It features a track width of 600 mm, a tr…

New Holland E80 is a crawler excavator manufactured since 2005, with a weight of 7 tons. It features a track width of 600 mm, a transport length of 6 meters, a transport width of 2 meters, and a transport height of 2 meters. The bucket width is 0.914 meters. Special equipment includes a blade, a diesel particulate filter, and track adjustment.

Crawler Excavators New Holland E80

Technical specs - E80 New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Transport length
6 m
Transport width
2 m
Transport height
2 m
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
7.49 m
Dredging depth
4.65 m
Tear-out force
52.9 kN
Bucket width
0.914 m
Engine manuf.
Isuzu
Engine type
A-4JB1
Engine power
40.4 kW
Displacement
2.77 l
No. of cylinders
4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E80 FAQ

When was the New Holland E80 manufactured?

The New Holland E80 was first produced in 2005.

How much does the New Holland E80 weigh?

The New Holland E80 weighs 7 tons.

What are the transport dimensions of the New Holland E80 crawler excavator?

The New Holland E80 has a transport length of 6 meters, a transport width of 2 meters, and a transport height of 2 meters.

What are the undercarriage specifications of the New Holland E80?

The New Holland E80 has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E80 crawler excavator?

The New Holland E80 crawler excavator has a dredging depth of 4.65 meters, a maximum horizontal reach of 7.49 meters, and is equipped with a monobloc boom.

What is the power-related tear-out force of the New Holland E80?

The New Holland E80 has a tear-out force of 52.9 kN.

What is the bucket width of the New Holland E80 crawler excavator?

The bucket width of the New Holland E80 crawler excavator is 0.914 meters.
