E385C BEH New Holland excavator specs & Dimensions (2012 - 2015)

Model rating
5,00 / 10

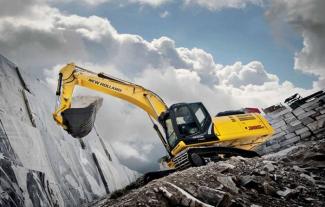

New Holland E385C BEH is a Crawler Excavator manufactured from 2012 to 2015. It has a weight of 35.4 tons and a track width of 600…

New Holland E385C BEH is a Crawler Excavator manufactured from 2012 to 2015. It has a weight of 35.4 tons and a track width of 600 mm. The transport dimensions are 10.6 meters in length, 2.99 meters in width, and 3.195 meters in height. The excavator features a tear-out force of 250 kN, a dredging depth of 5.6 meters, and a maximum horizontal reach of 9.4 meters. It is equipped with a bucket that is 1.9 meters wide and has a capacity of 2.1 cubic meters. Special equipment includes air conditioning and material handling capabilities.

Crawler Excavators New Holland E385C BEH

Technical specs - E385C BEH New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
35.4 t
Transport length
10.6 m
Transport width
2.99 m
Transport height
3.195 m
Bucket capacity
2.1 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.4 m
Dredging depth
5.6 m
Tear-out force
250 kN
Bucket width
1.9 m
Model series
E
Engine manuf.
Hino
Engine type
J 08 E-UV
Engine power
213 kW
Displacement
7.684 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E385C BEH FAQ

When was the New Holland E385C BEH manufactured?

The New Holland E385C BEH was manufactured from 2012 to 2015.

How much does the New Holland E385C BEH weigh?

The New Holland E385C BEH weighs 35.4 tons.

What are the transport dimensions of the New Holland E385C BEH crawler excavator?

The New Holland E385C BEH has a transport length of 10.6 meters, a transport width of 2.99 meters, and a transport height of 3.2 meters.

What are the undercarriage specifications of the New Holland E385C BEH?

The New Holland E385C BEH has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E385C BEH?

The New Holland E385C BEH has a dredging depth of 5.6 meters, a maximum horizontal reach of 9.4 meters, and is equipped with a monobloc boom.

What is the tear-out force of the New Holland E385C BEH, given that no power rating data is available?

The New Holland E385C BEH has a tear-out force of 250 kN.

What are the specifications of the bucket on the New Holland E385C BEH crawler excavator?

The bucket of the New Holland E385C BEH has a capacity of 2.1 cubic meters and a width of 1.9 meters.
