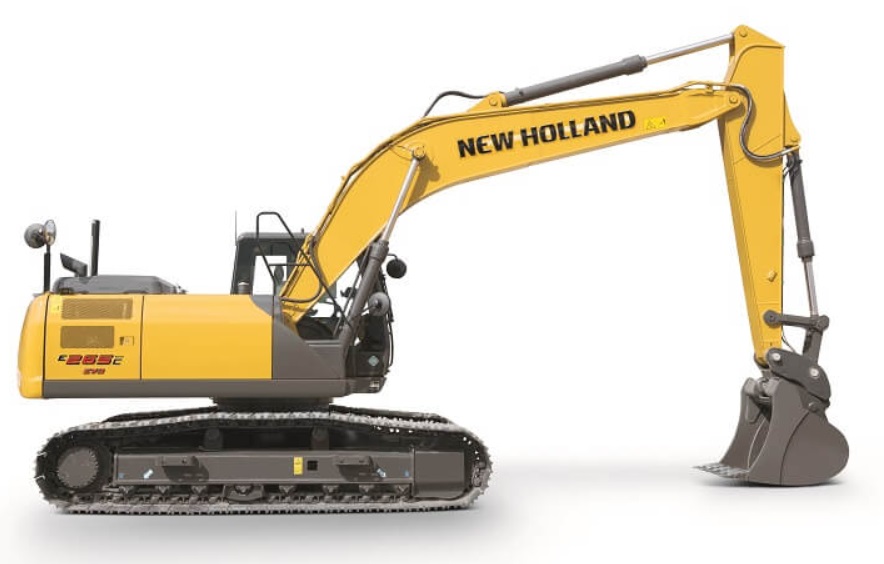

E265C EL New Holland excavator specs & Dimensions (2011 - 2015)

New Holland E265C EL is a Crawler Excavator manufactured from 2011 to 2015. It has a weight of 27.9 tons and a track width of 600 …

New Holland E265C EL is a Crawler Excavator manufactured from 2011 to 2015. It has a weight of 27.9 tons and a track width of 600 mm. The transport dimensions are 14.2 meters in length, 2.99 meters in width, and 3.445 meters in height. The machine features a tear-out force of 190 kN and a maximum horizontal reach of 18.2 meters. The bucket width is 1.7 meters with a capacity of 1.4 cubic meters. It is equipped with air conditioning.

Crawler Excavators New Holland E265C EL
Crawler Excavators New Holland E265C EL
Crawler Excavators New Holland E265C EL
Crawler Excavators New Holland E265C EL
Crawler Excavators New Holland E265C EL
Crawler Excavators New Holland E265C EL

Technical specs - E265C EL New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
27.9 t
Transport length
14.2 m
Transport width
2.99 m
Transport height
3.445 m
Bucket capacity
1.4 m³
Track width
600 mm
Max. Reach horizontal
18.2 m
Tear-out force
190 kN
Bucket width
1.7 m
Model series
E
Engine manuf.
CNH
Engine type
F4HFE613S-A004
Engine power
142 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dredging depth, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E265C EL FAQ

When was the New Holland E265C EL manufactured?

The New Holland E265C EL was manufactured from 2011 to 2015.

How much does the New Holland E265C EL weigh?

The New Holland E265C EL weighs 27.9 tons.

What are the transport dimensions of the New Holland E265C EL crawler excavator?

The New Holland E265C EL has a transport length of 14.2 meters, a transport width of 2.99 meters, and a transport height of 3.45 meters.

What is the track width of the New Holland E265C EL's undercarriage?

The New Holland E265C EL has a track width of 600 mm.

What is the maximum horizontal reach of the New Holland E265C EL during excavation?

The New Holland E265C EL has a maximum horizontal reach of 18.2 meters during excavation.

What is the tear-out force of the New Holland E265C EL?

The New Holland E265C EL has a tear-out force of 190 kN.

What are the specifications of the primary work tool (bucket) on the New Holland E265C EL?

The New Holland E265C EL has a bucket with a capacity of 1.4 cubic meters and a width of 1.7 meters.

How much is a New Holland E265C EL Crawler excavator (2011u20132015) worth?

The residual value of the New Holland E265C EL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
